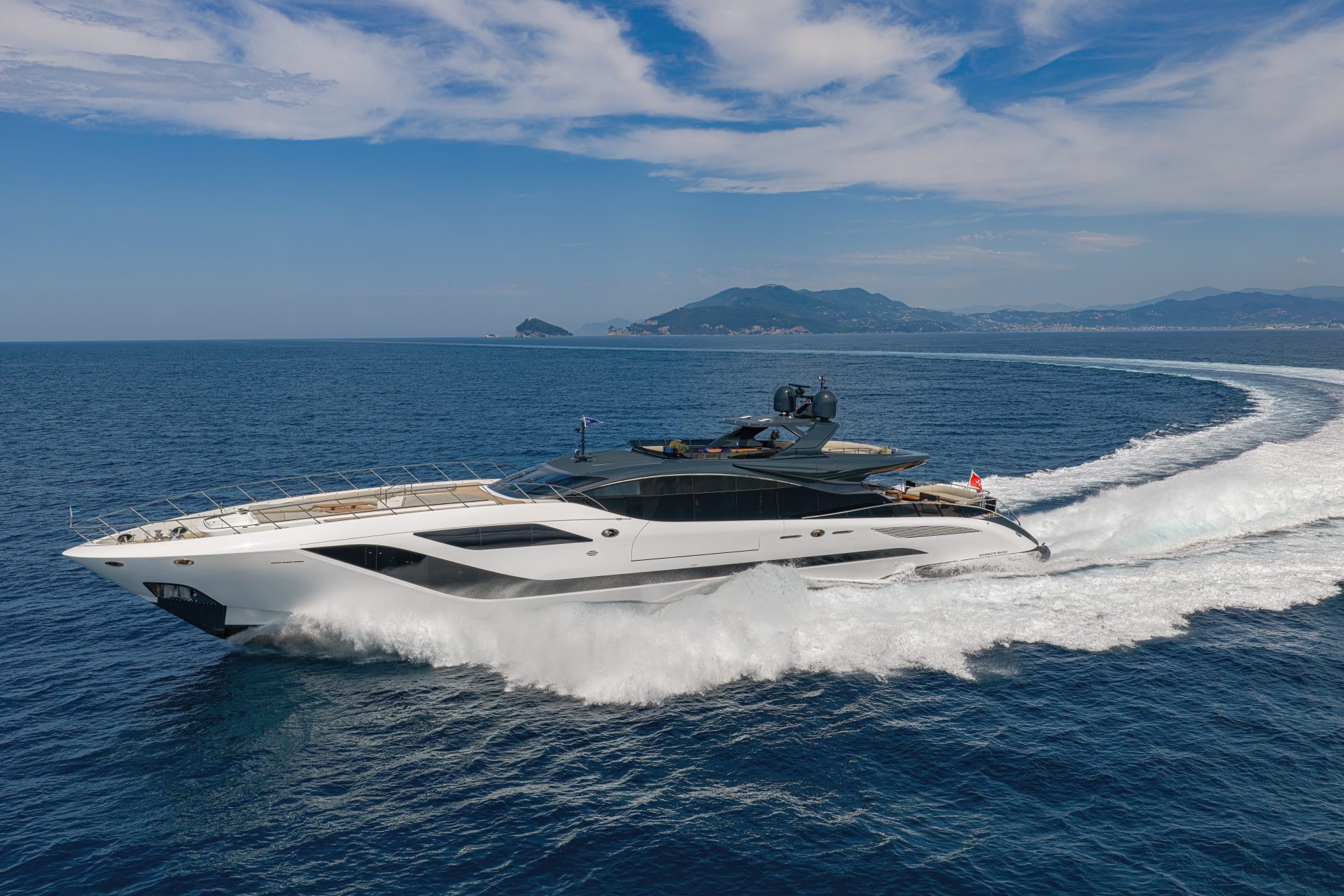

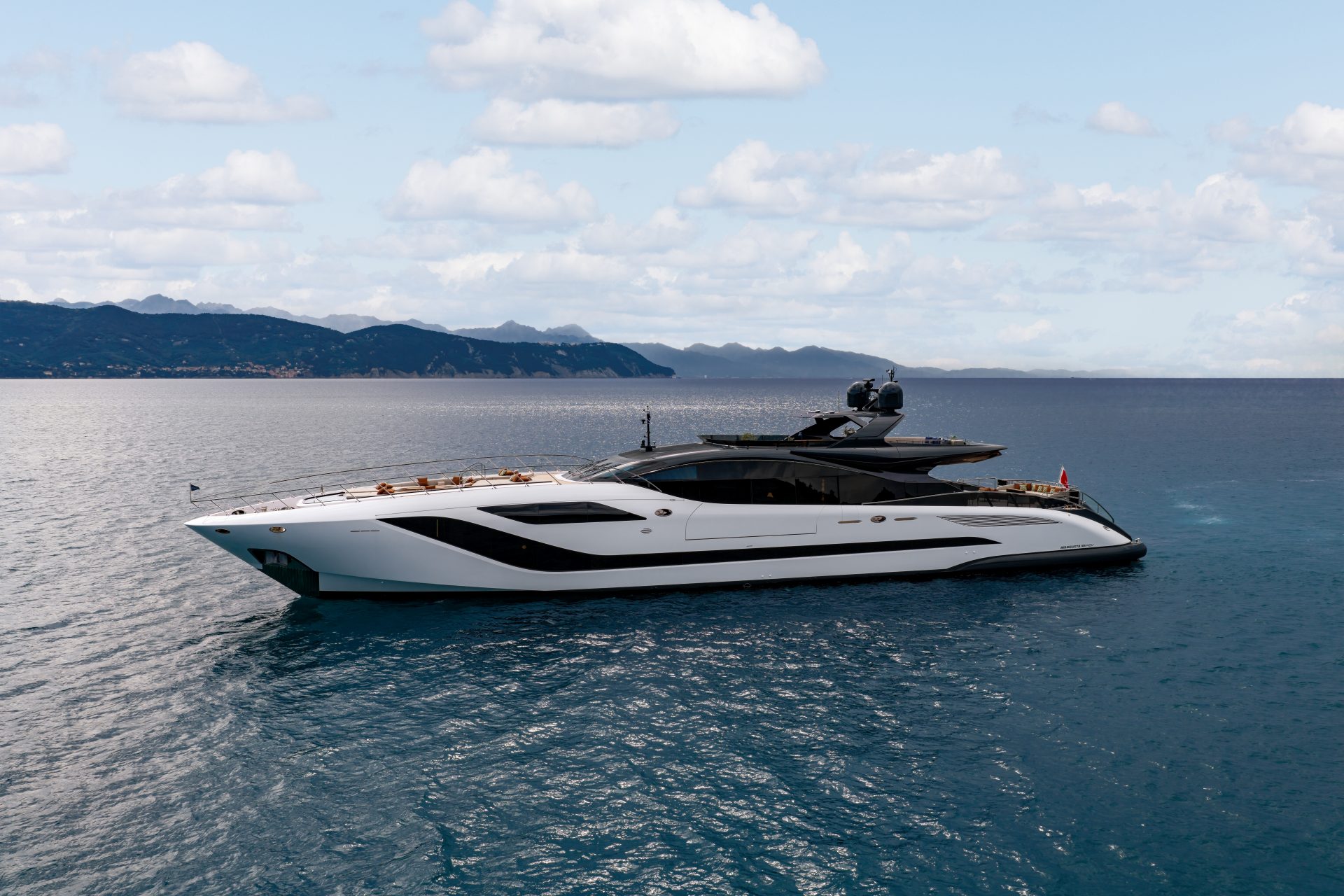

Mangusta 165 REV

Specs & Performance

Construction

Hull
SINGLESKIN COMPOSITE
Superstructure
SANDWICH COMPOSITE

Dimensions

Length Overall
49.90 M / 163'8''
Beam
~ 9.2 M / 30'2''
Max Draft
~ 2 M / 6'6''
Displacement at full load
~ 315 T / 694,456 LBS
Displacement at half load
~ 290 T / 640,000 LBS
Gross Tonnage
499 GT

Tank capacity

Fuel Capacity
~ 40,000 L / 10,500 US GALS
Water capacity
~ 4,000 L / 1,060 US GALS

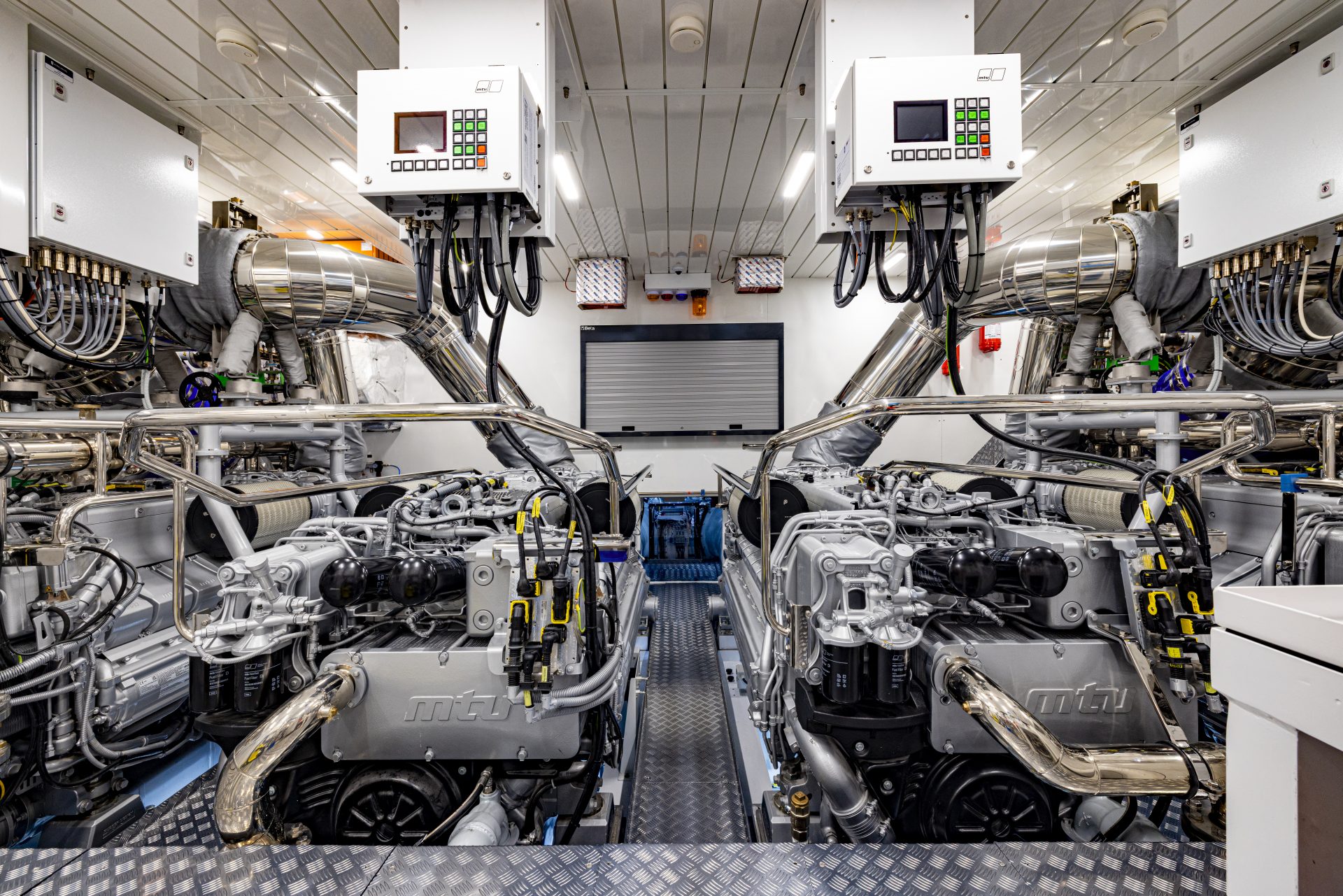

Propulsion

Main engines power
4 X MTU 16V 2000 M96L 2600 HP @ 2450 RPM (1939 kW)
Transmission
2 X WATERJETS KAMEWA S4-71 + 2 X WATERJETS KAMEWA B4-71
Stabilizers
ZERO SPEED AND UNDERWAY

Performance

Max speed half load
~ 34 KNOTS
Cruising Speed half load
~ 30 KNOTS
Range at cruising speed
~ 650 NM

Accommodation

Guests
12 IN 6 CABINS
Crew
9/10 IN 5 CABINS

Designers

Exteriors
LOBANOV DESIGN / OVERMARINE GROUP
Interiors
OVERMARINE GROUP
CUSTOM INTERIORS AVAILABLE
