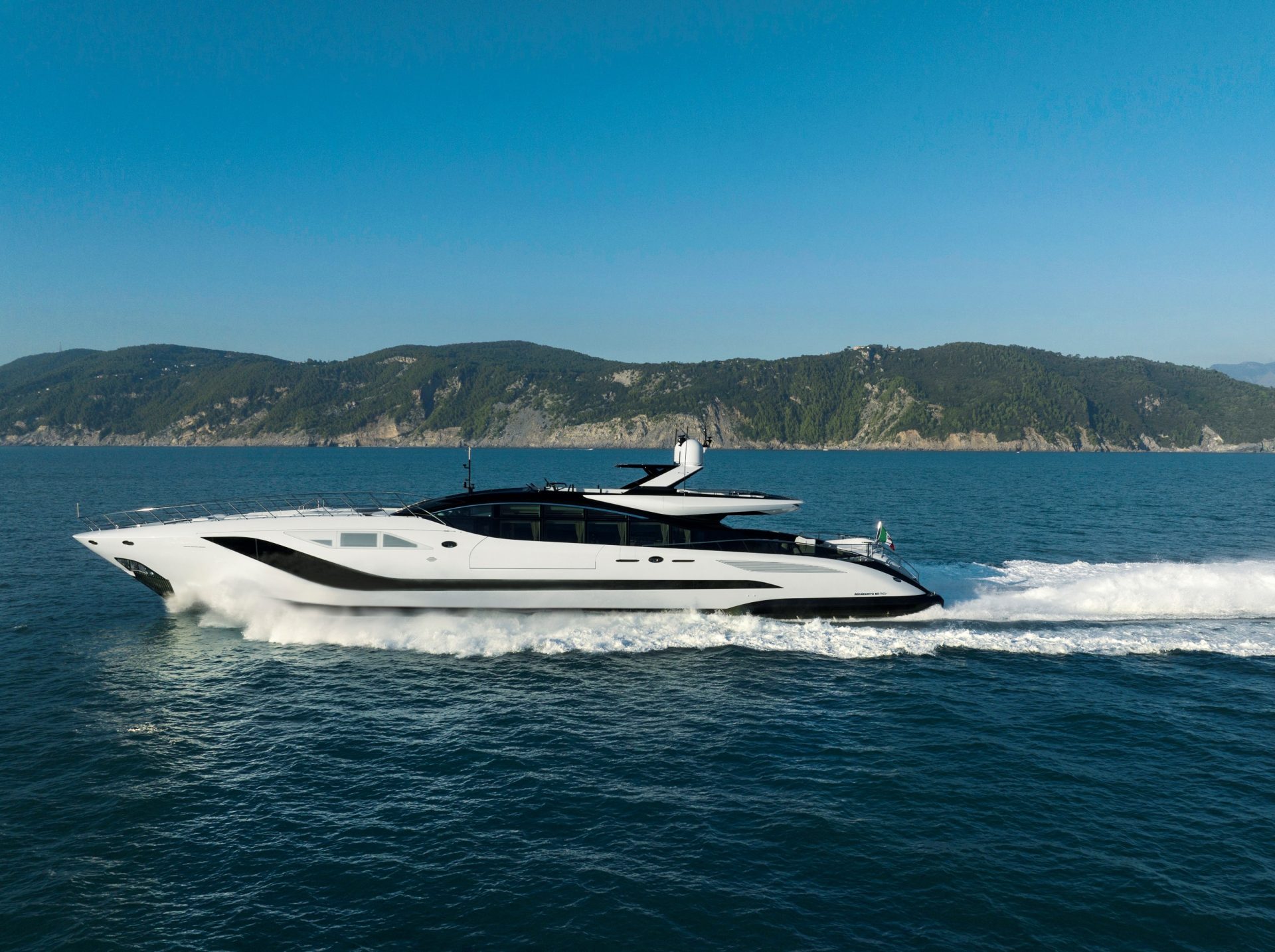

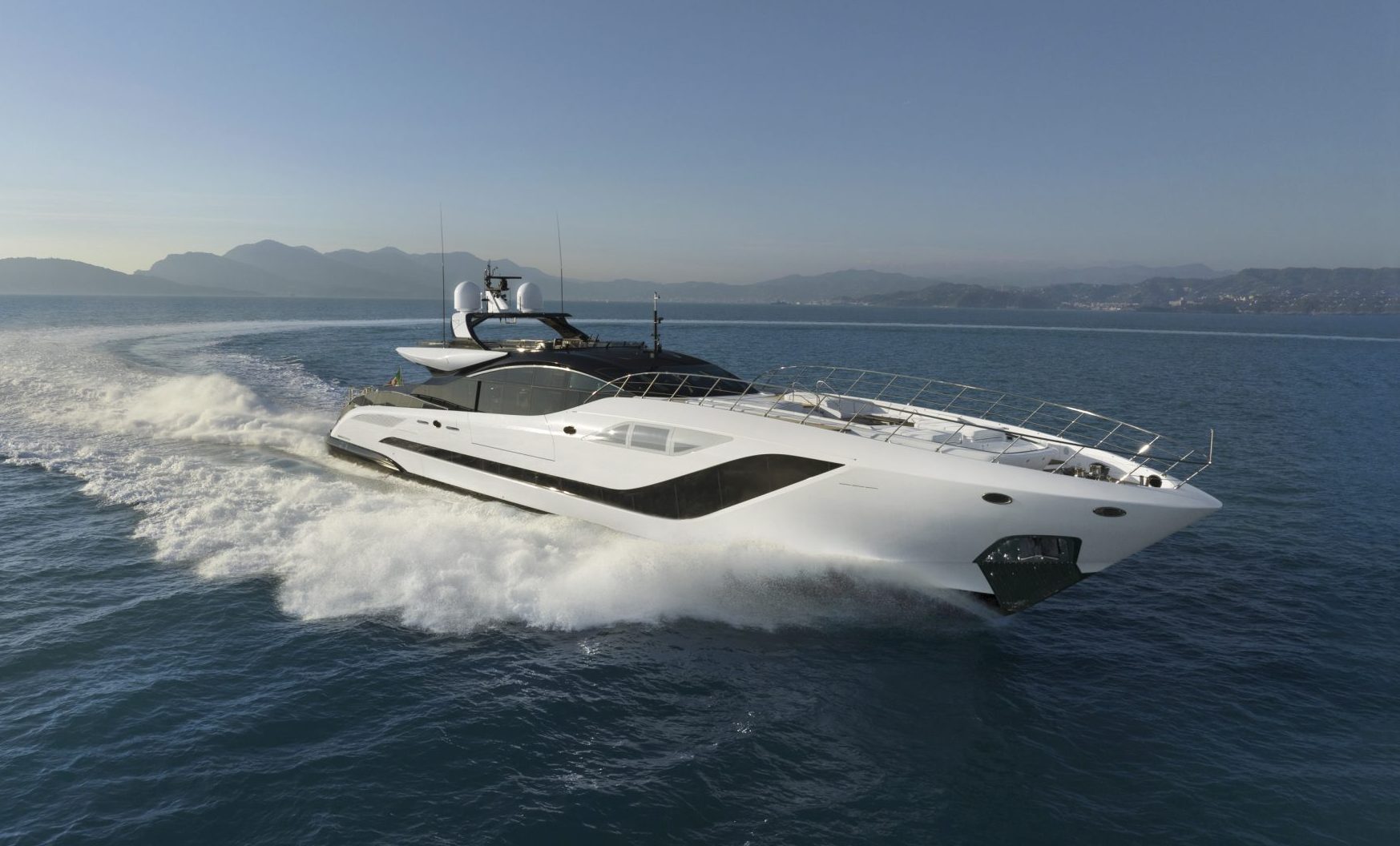

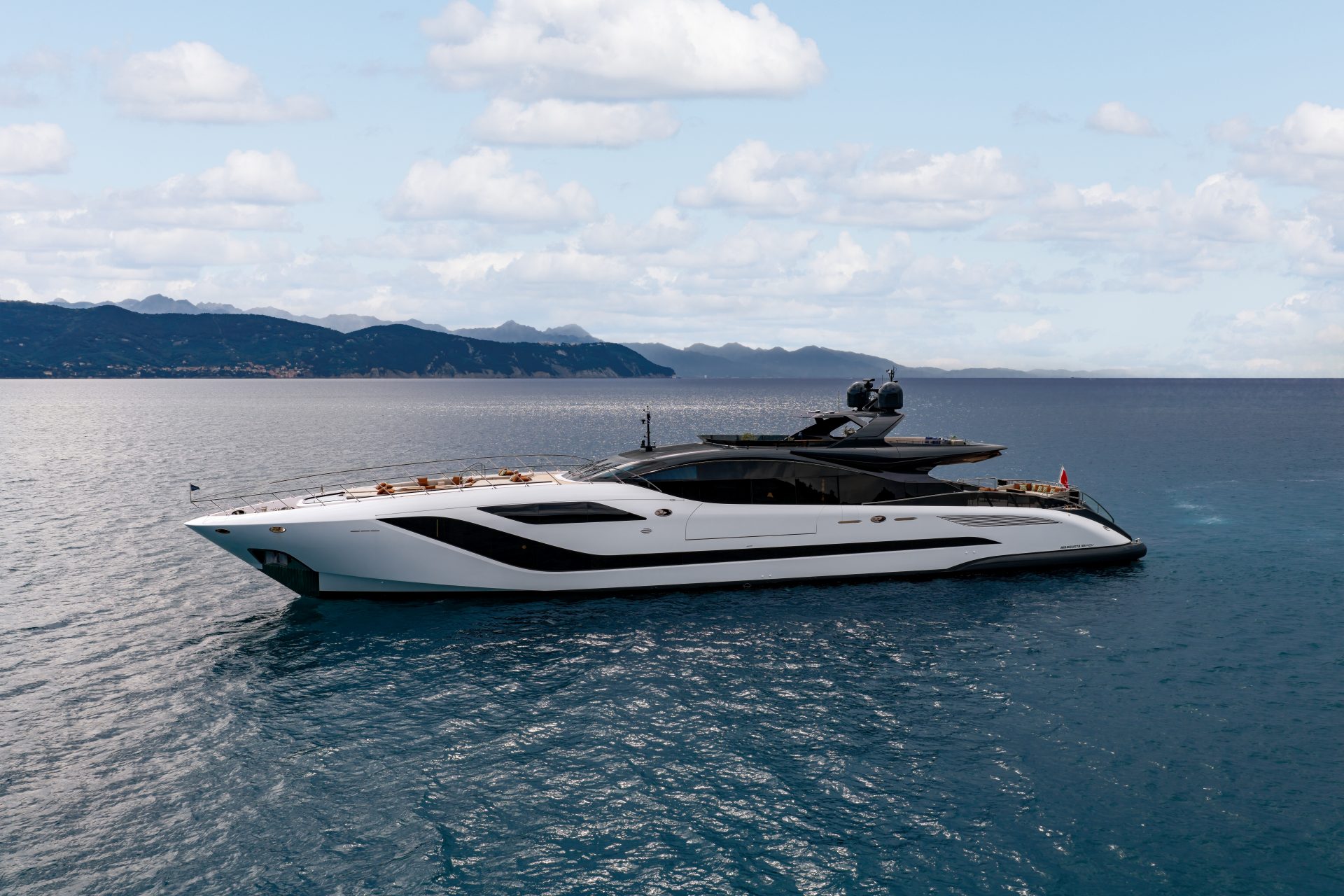

Mangusta 165 REV

Specs & Performance

Construction

Hull: SINGLESKIN COMPOSITE
Superstructure: SANDWICH COMPOSITE

Dimensions

Length Overall: 49.90 M / 163'8''
Beam: ~ 9.2 M / 30'2''
Max Draft: ~ 2 M / 6'6''
Displacement at full load: ~ 315 T / 694,456 LBS
Displacement at half load: ~ 290 T / 640,000 LBS
Gross Tonnage: 499 GT

Tank capacity

Fuel Capacity: ~ 40,000 L / 10,500 US GALS
Water capacity: ~ 4,000 L / 1,060 US GALS

Propulsion

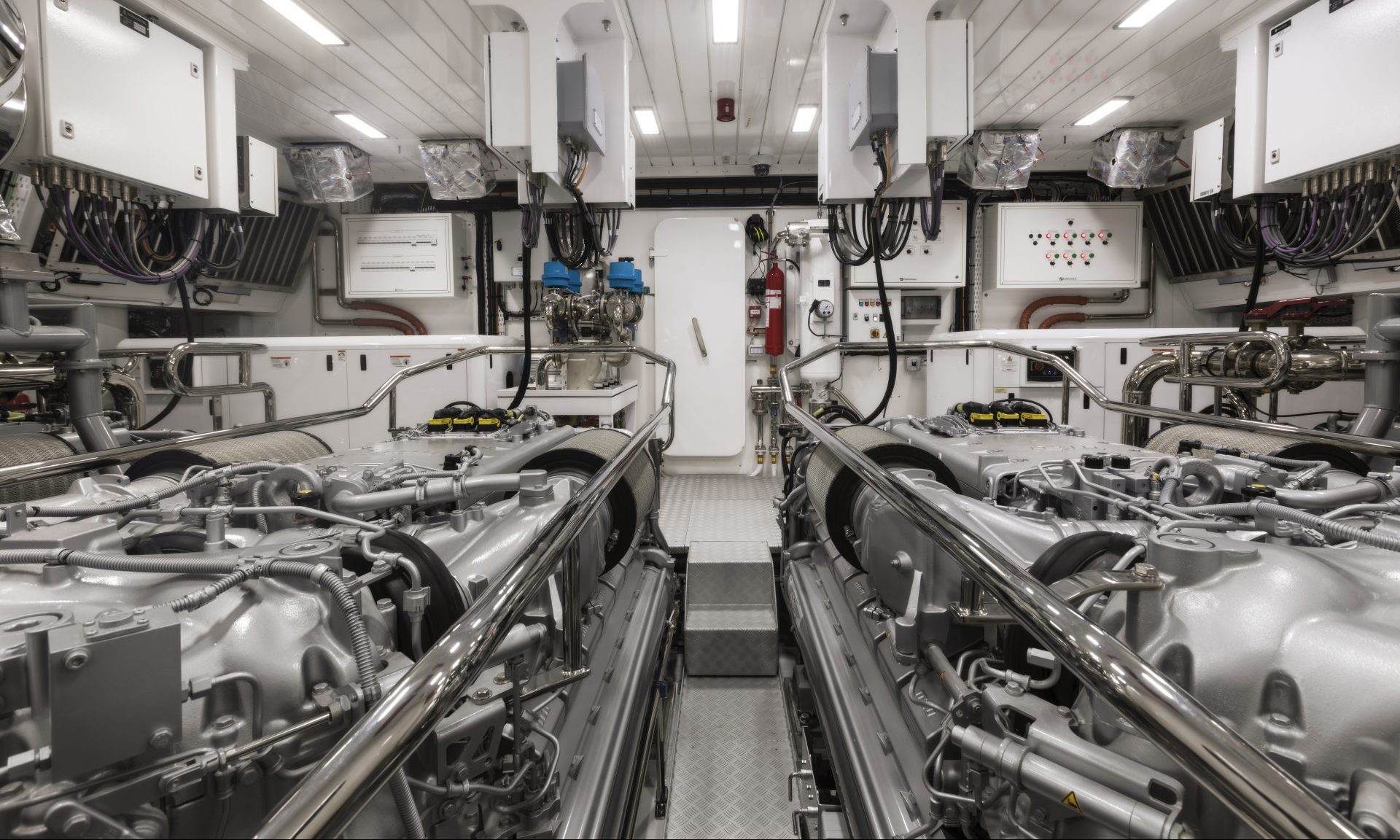

Main engines power: 4 X MTU 16V 2000 M96L 2600 HP @ 2450 RPM (1939 kW)
Transmission: 2 X WATERJETS KAMEWA S4-71 + 2 X WATERJETS KAMEWA B4-71
Stabilizers: ZERO SPEED AND UNDERWAY

Performance

Max speed half load: ~ 34 KNOTS
Cruising Speed half load: ~ 30 KNOTS
Range at cruising speed: ~ 650 NM

Accommodation

Guests: 12 IN 6 CABINS
Crew: 9/10 IN 5 CABINS

Designers

Exteriors: LOBANOV DESIGN / OVERMARINE GROUP
Interiors: OVERMARINE GROUP
CUSTOM INTERIORS AVAILABLE

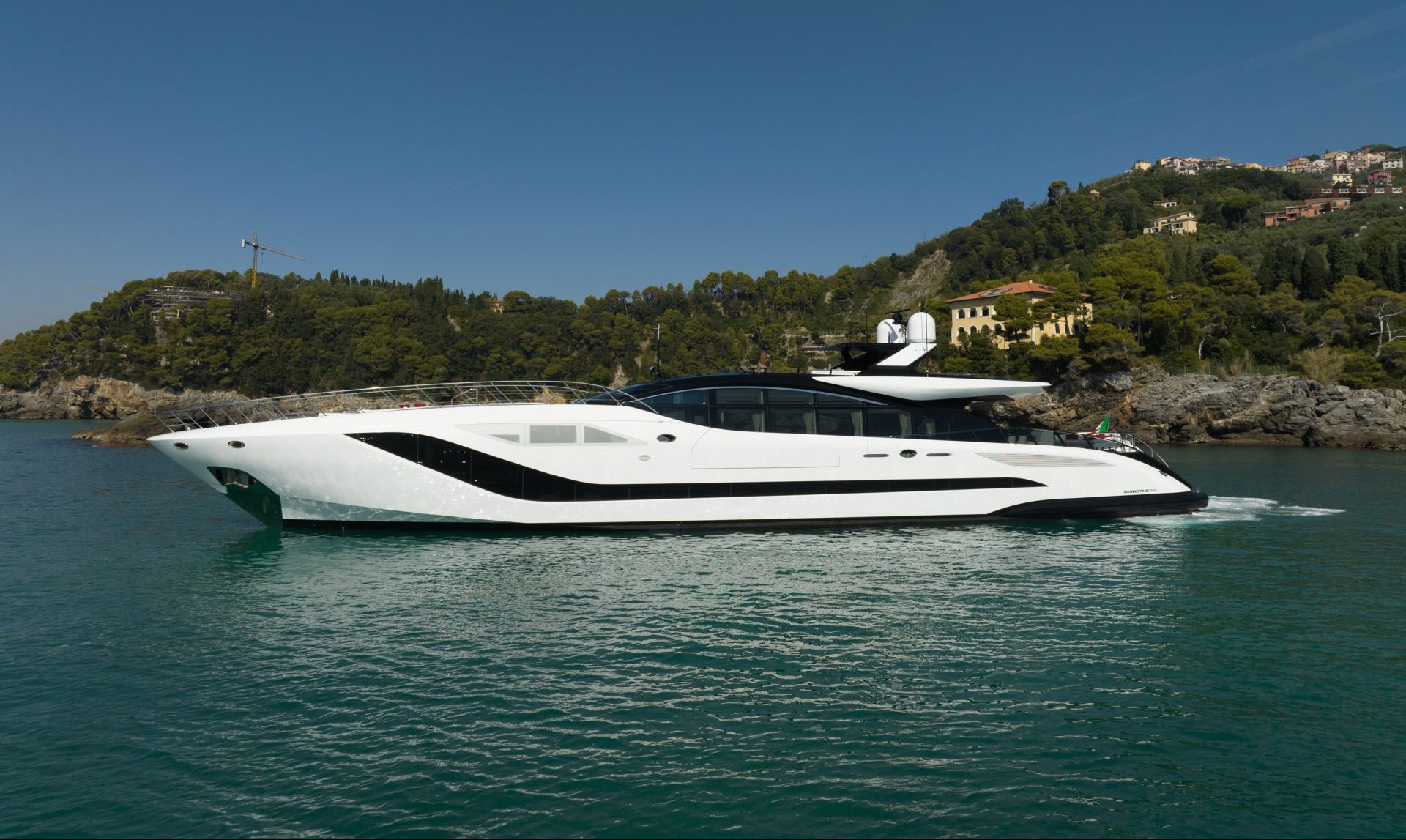

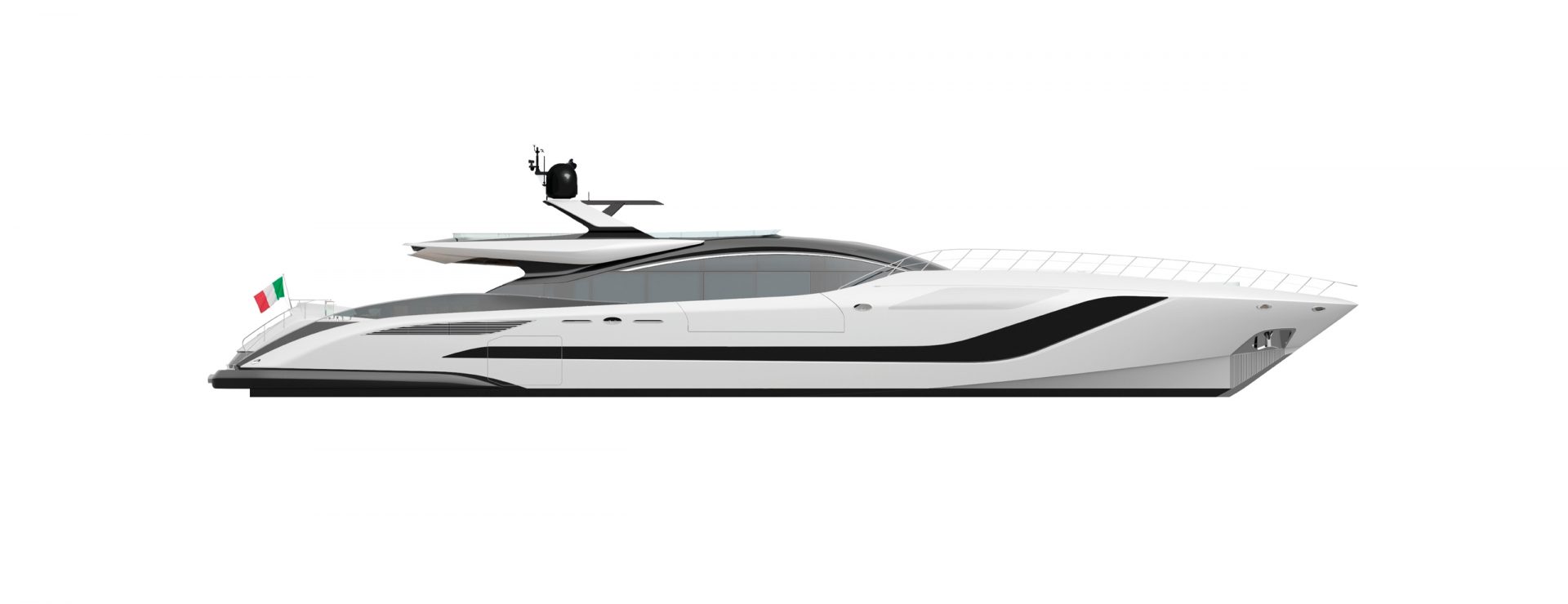

Profile

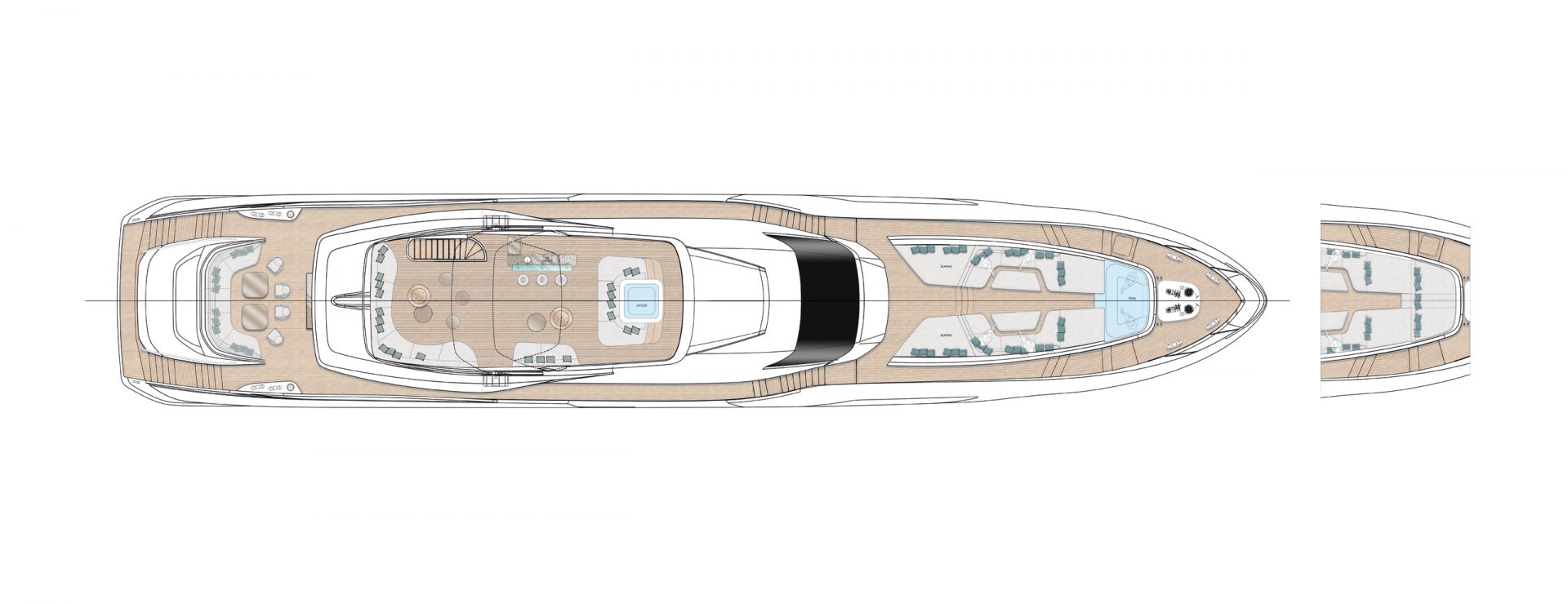

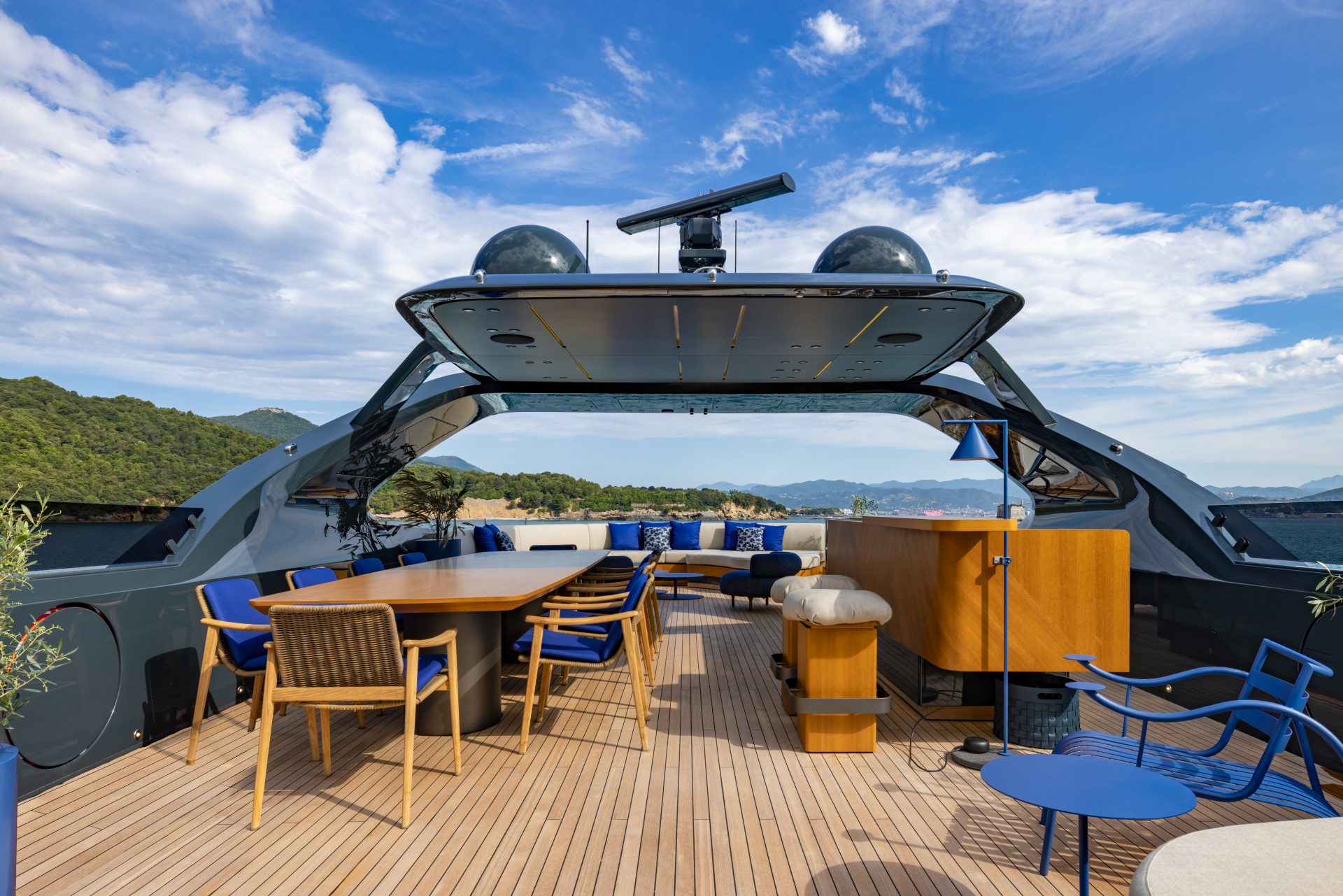

Sun deck

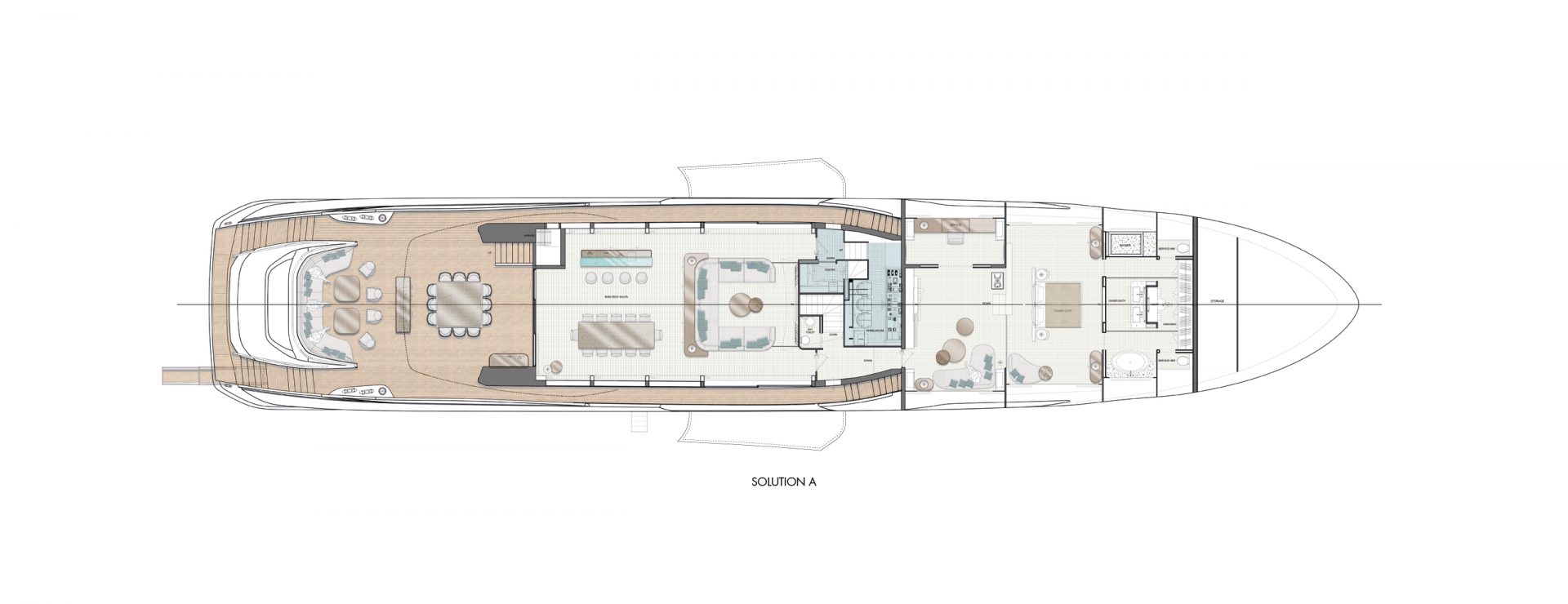

Main deck A

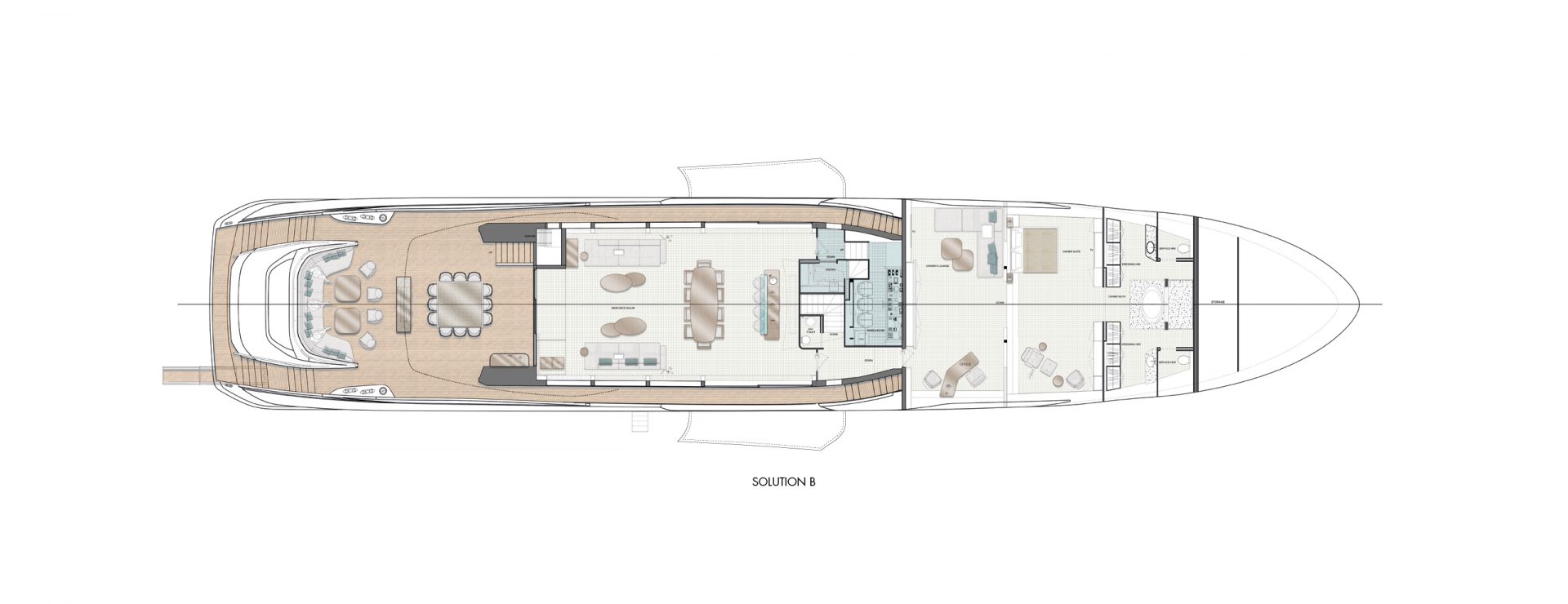

Main deck B

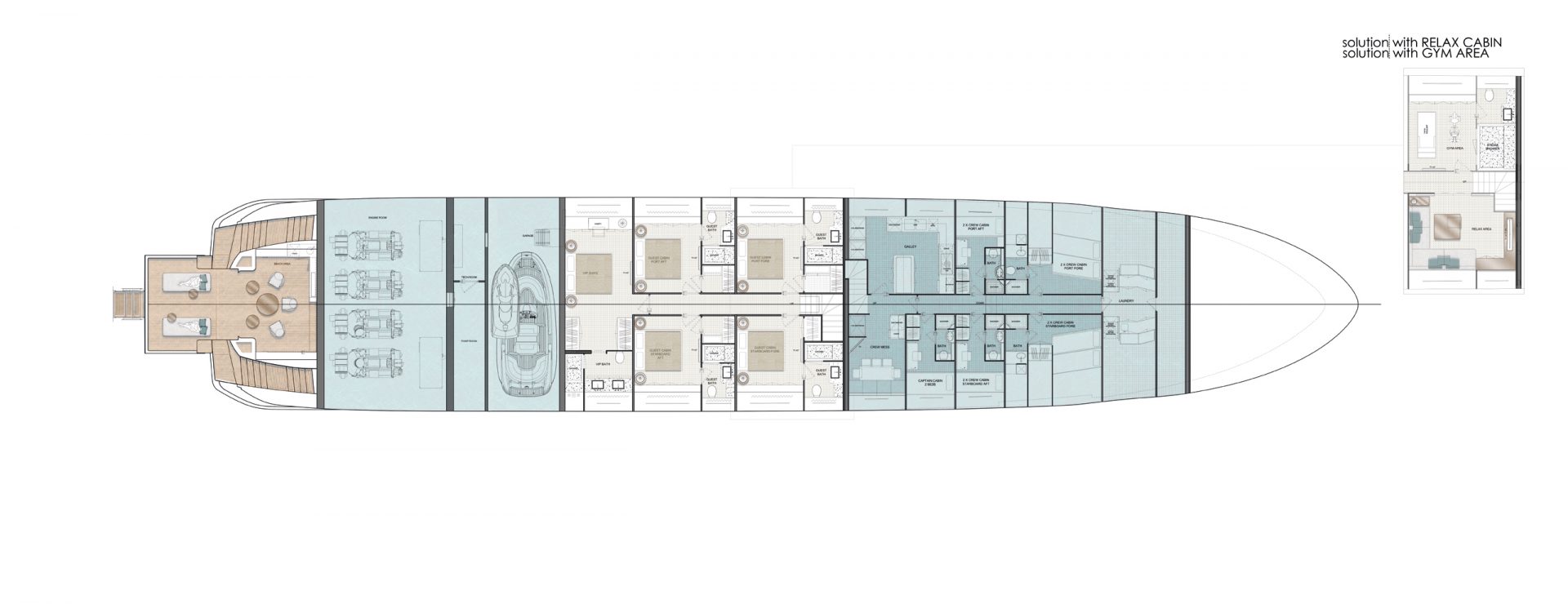

Lower deck

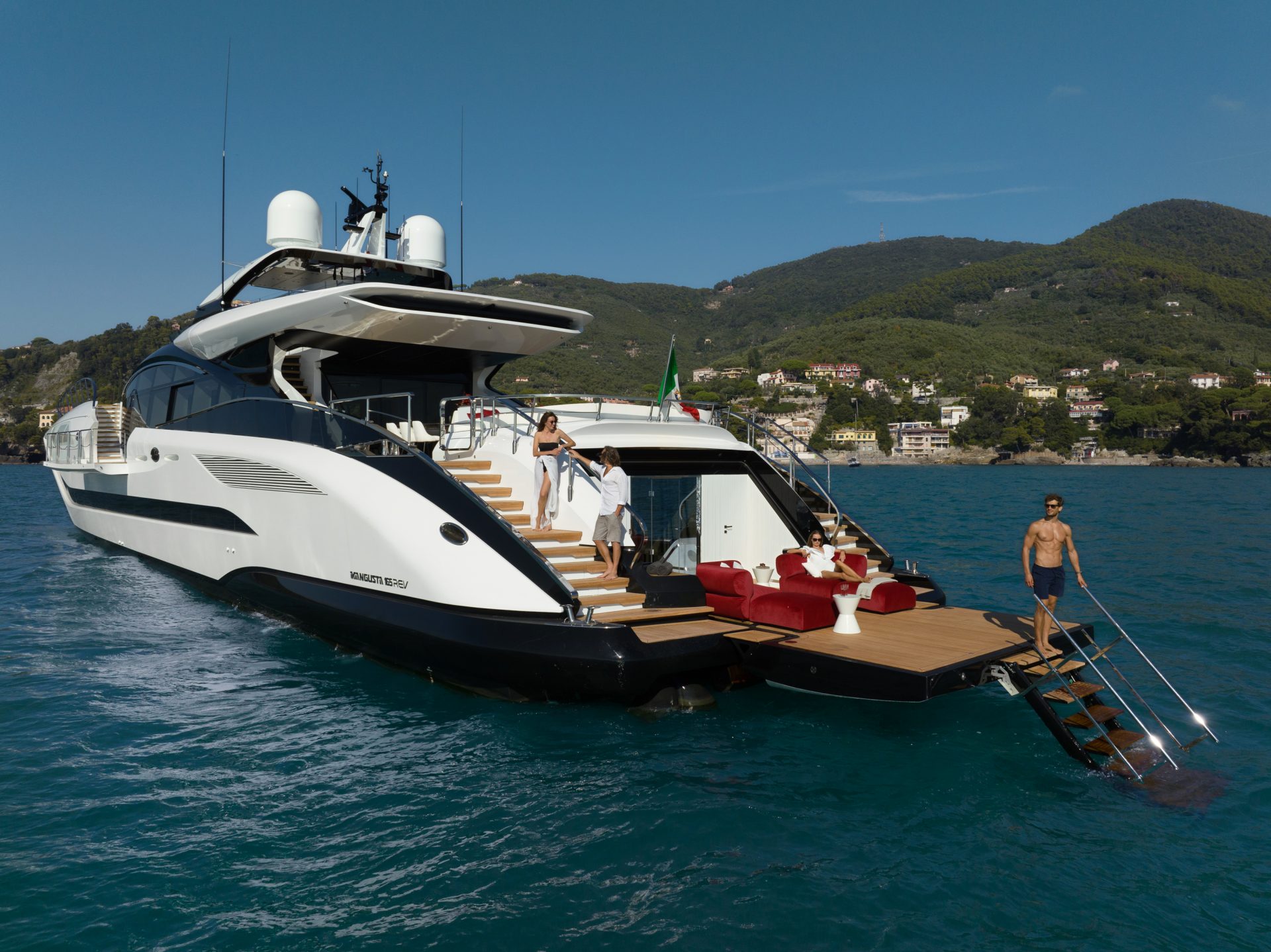

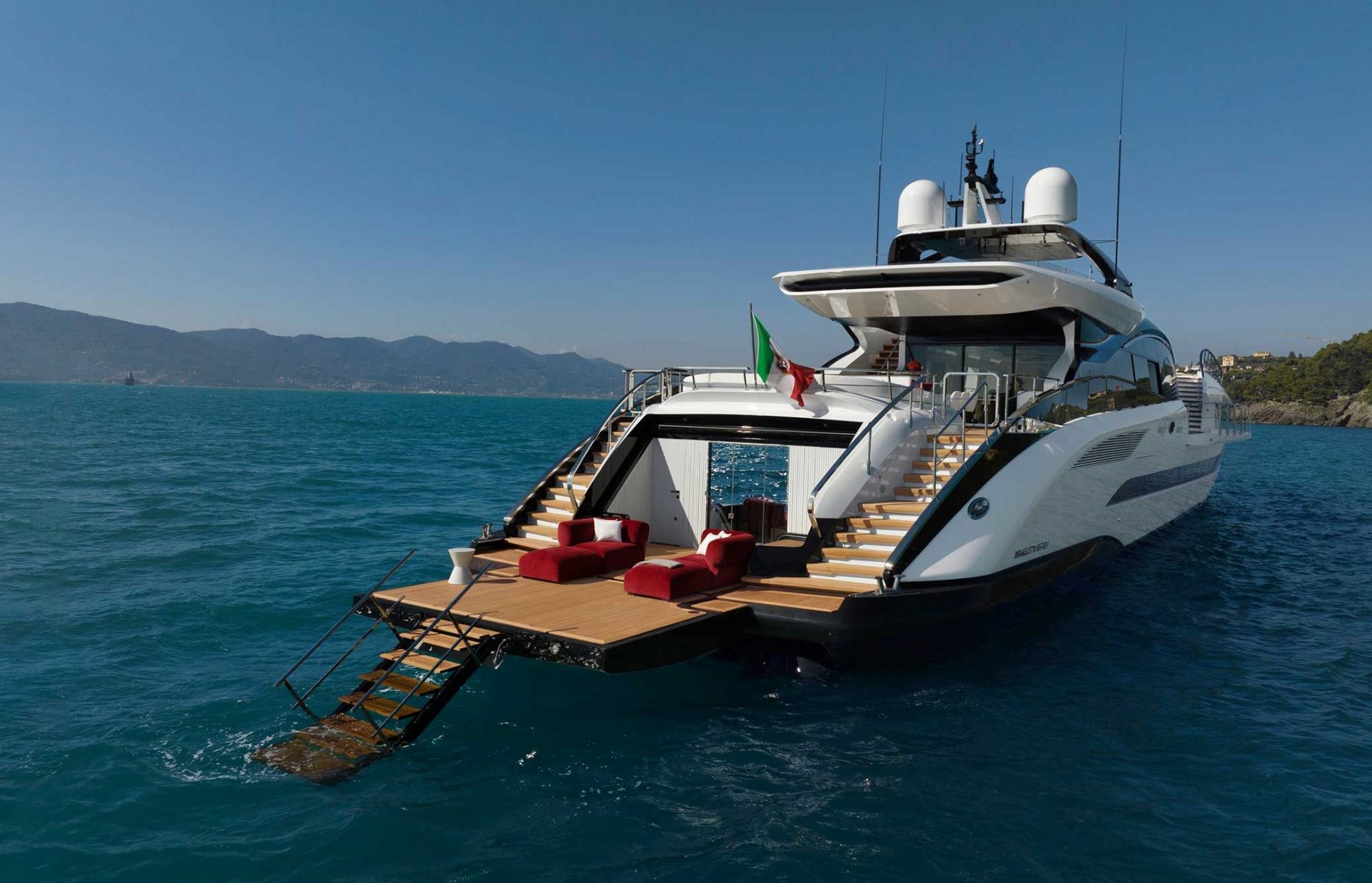

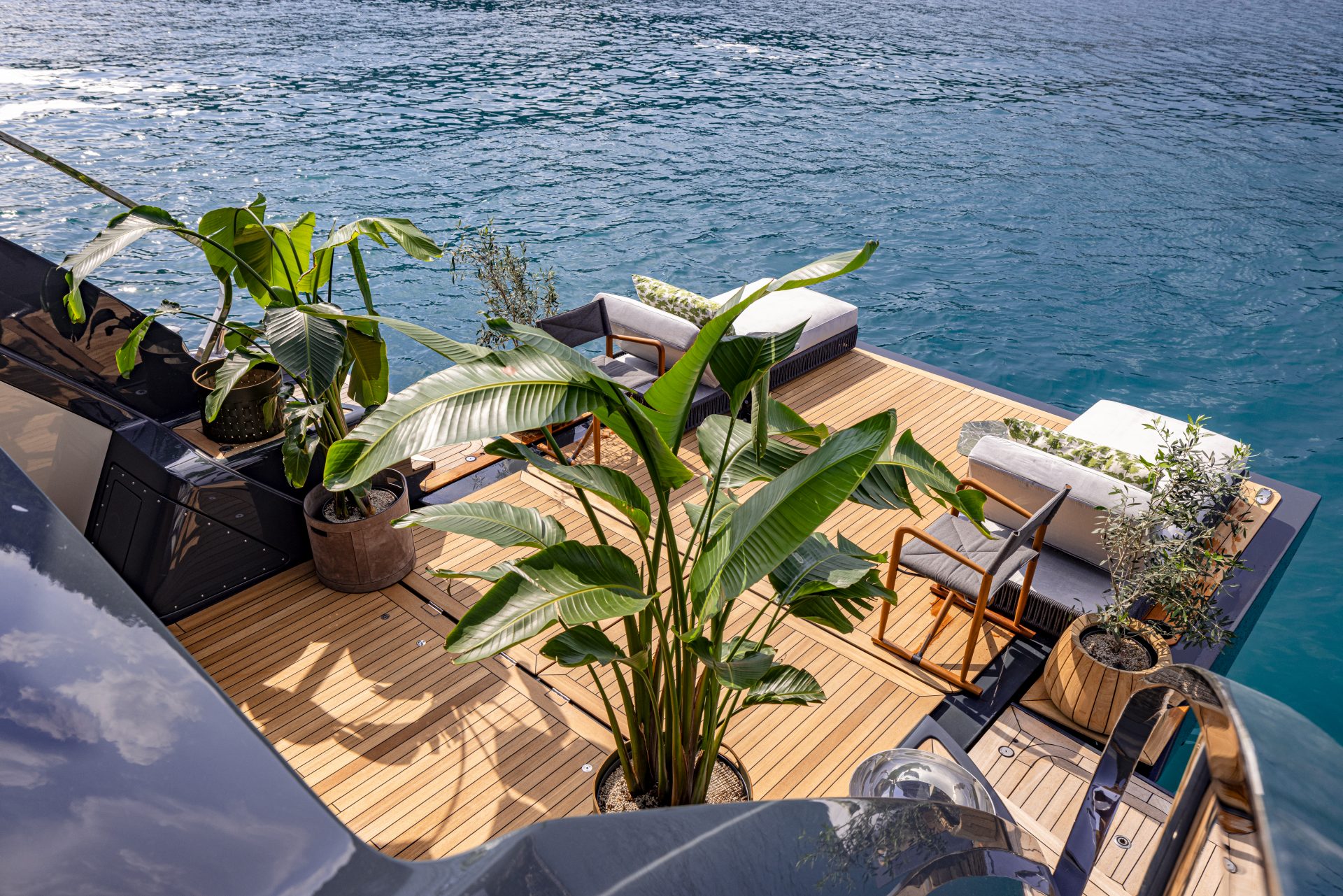

FULLY-EQUIPPED BEACH & LOUNGE AREA

At the stern, the aft door opens to reveal a beach club conceived as a fully-equipped lounge area by the sea.

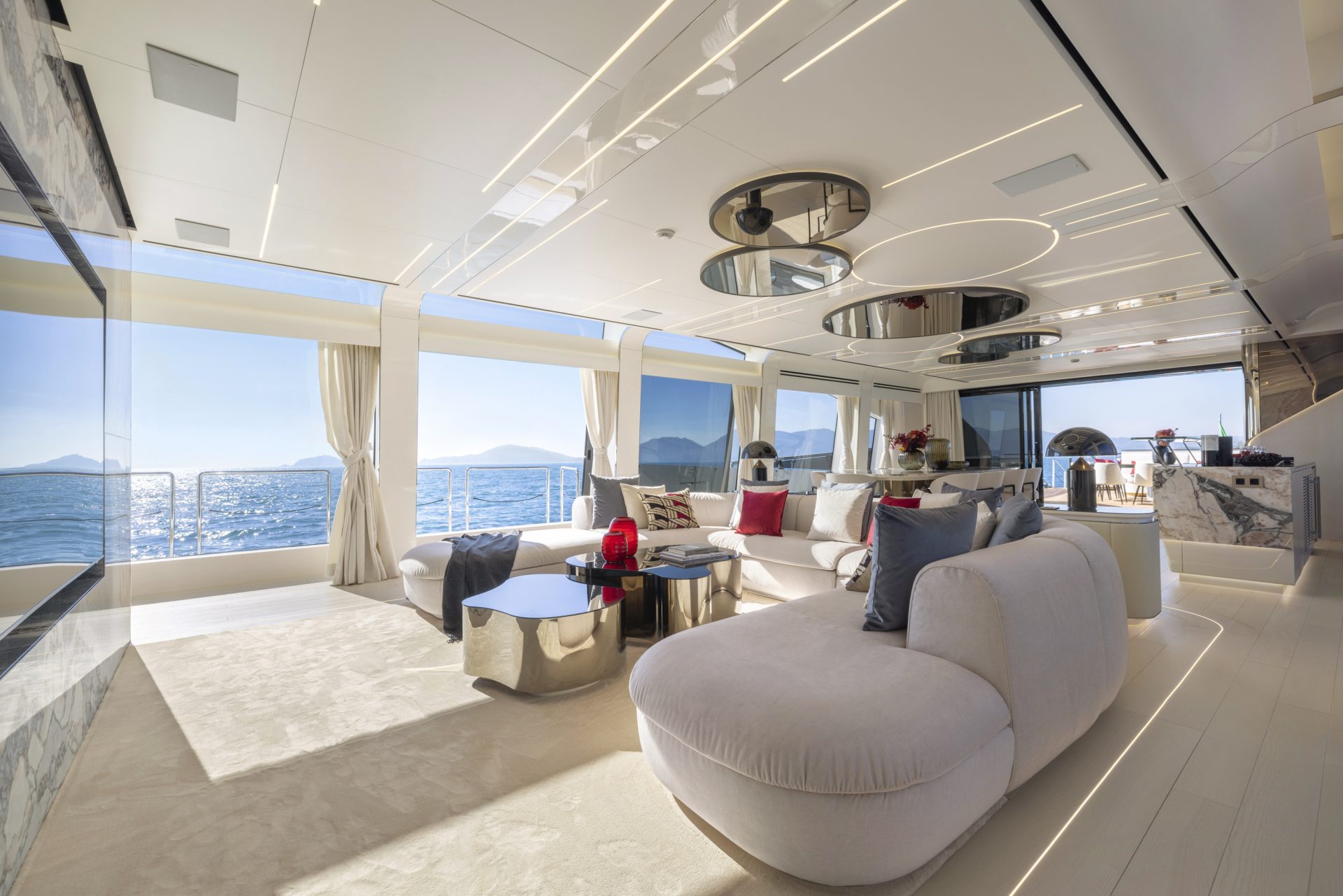

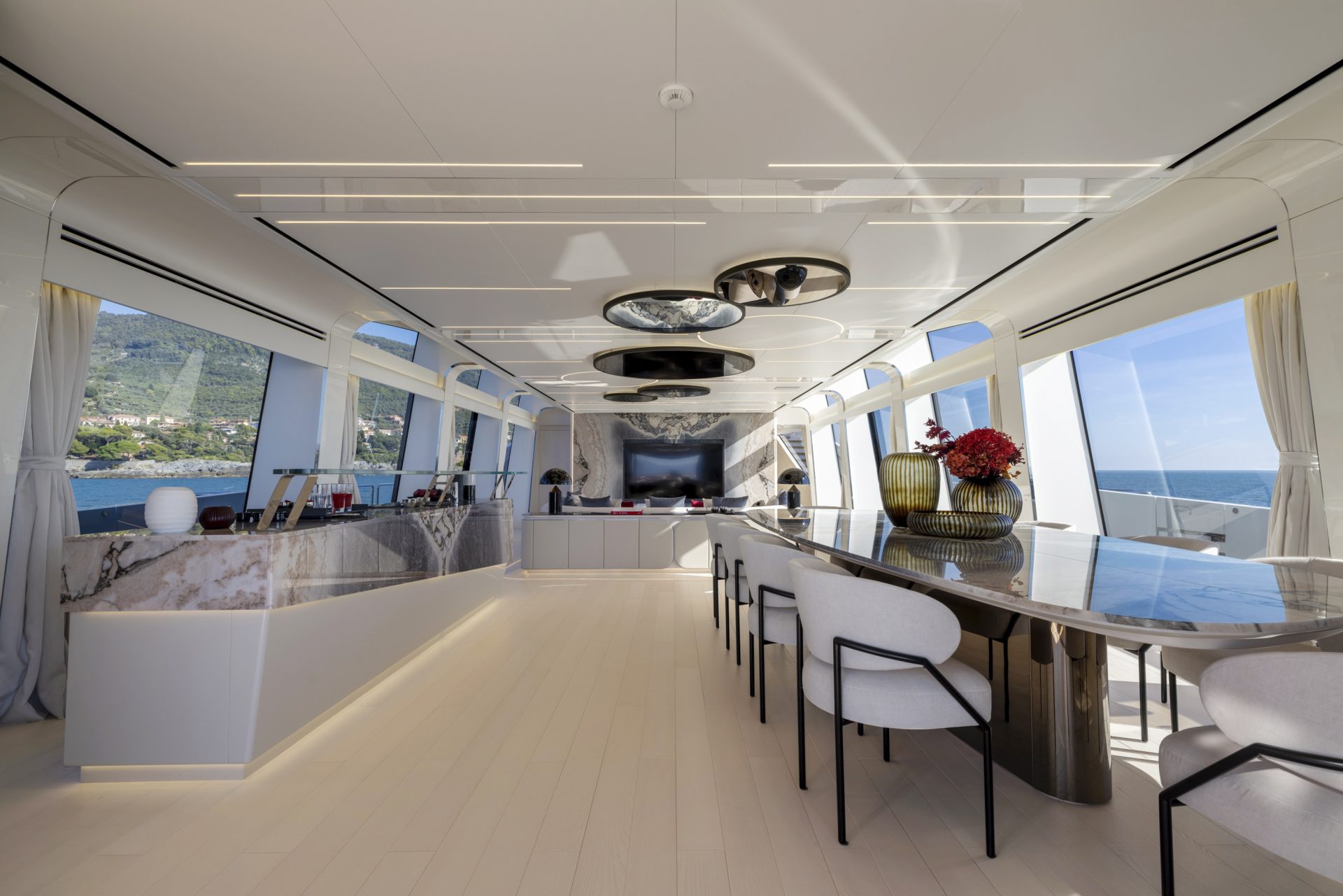

BREATHTAKING VIEW ON THE SEA

Ceiling high windows, opening up toward the stern and on the sides, where two large fold-down balconies create a smooth continuum between this room and the outdoor areas

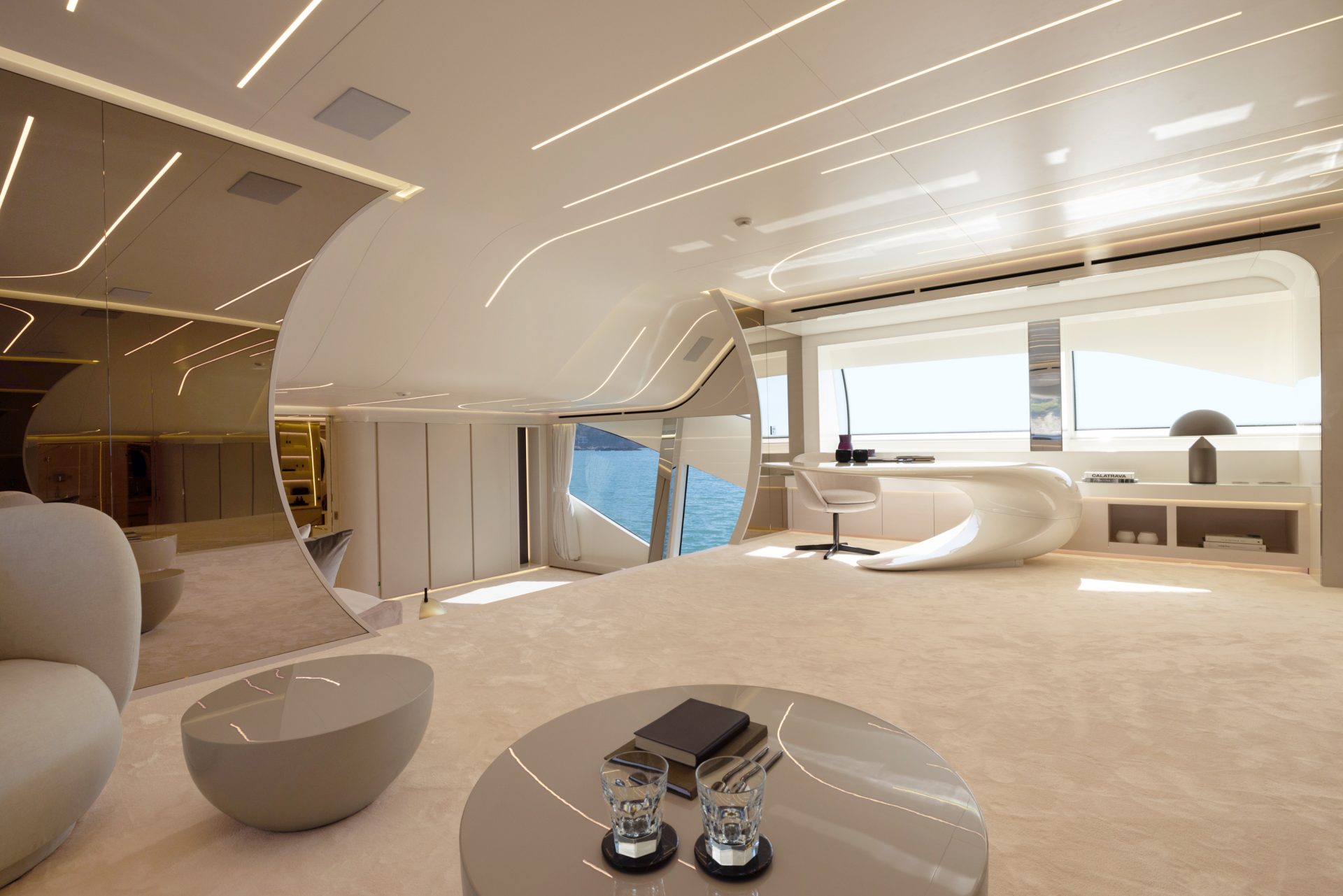

AN OPEN-SPACE LOFT

Magnificent full-beam, 92 sq. m (990 sq./ft.) master suite located on the main deck, featuring large, floor-to-ceiling glazed surfaces flawlessly integrated in the hull.

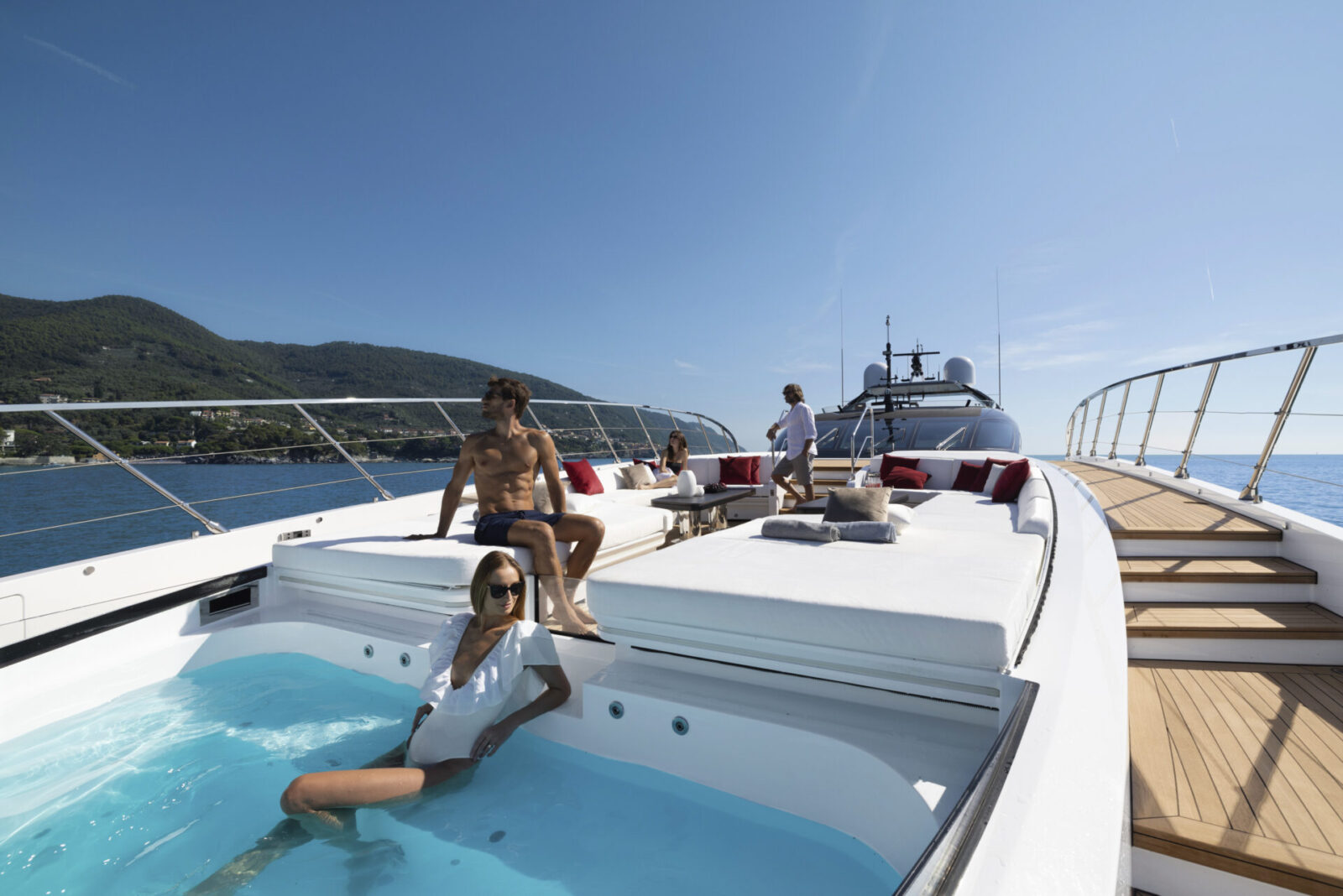

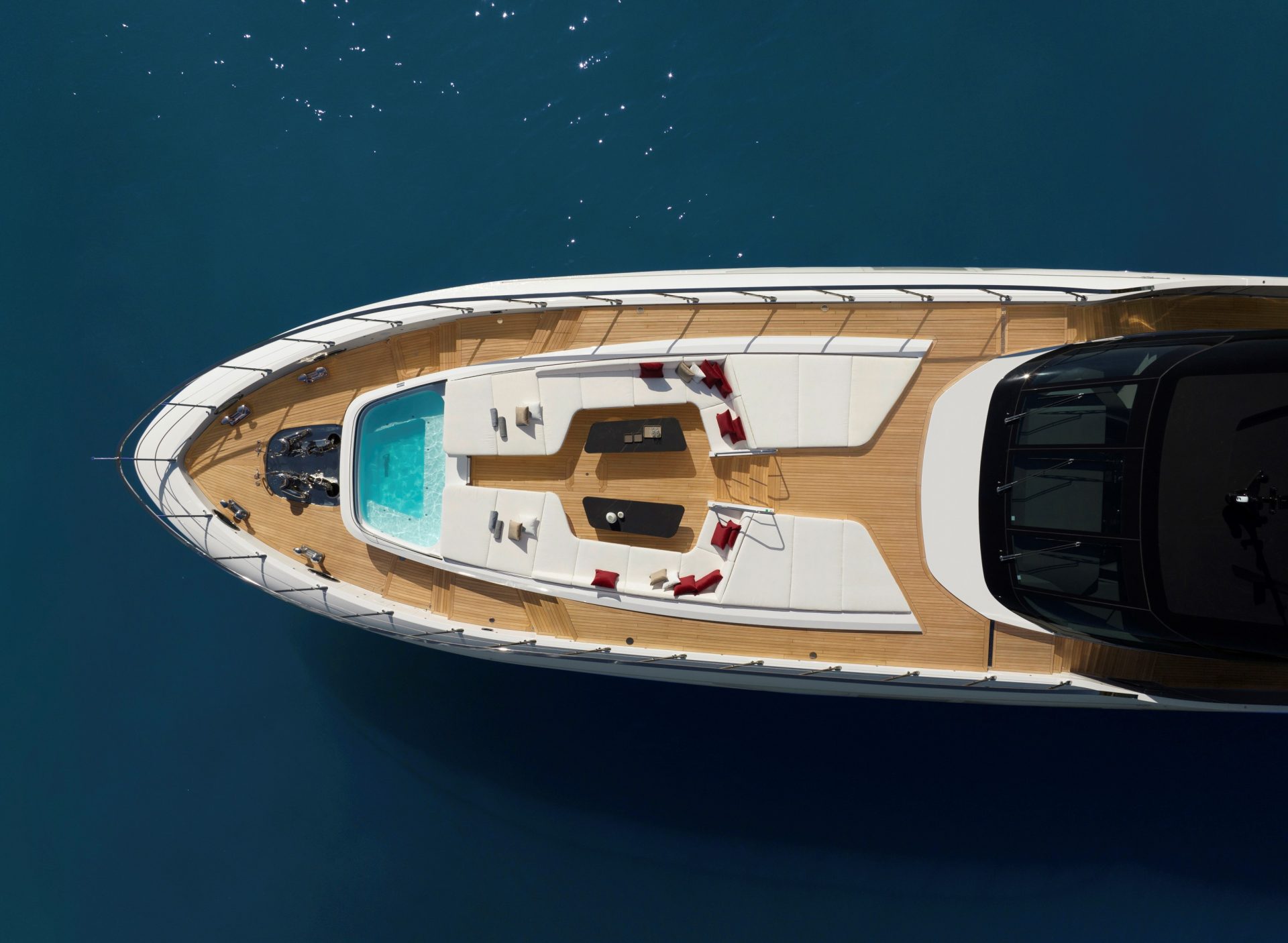

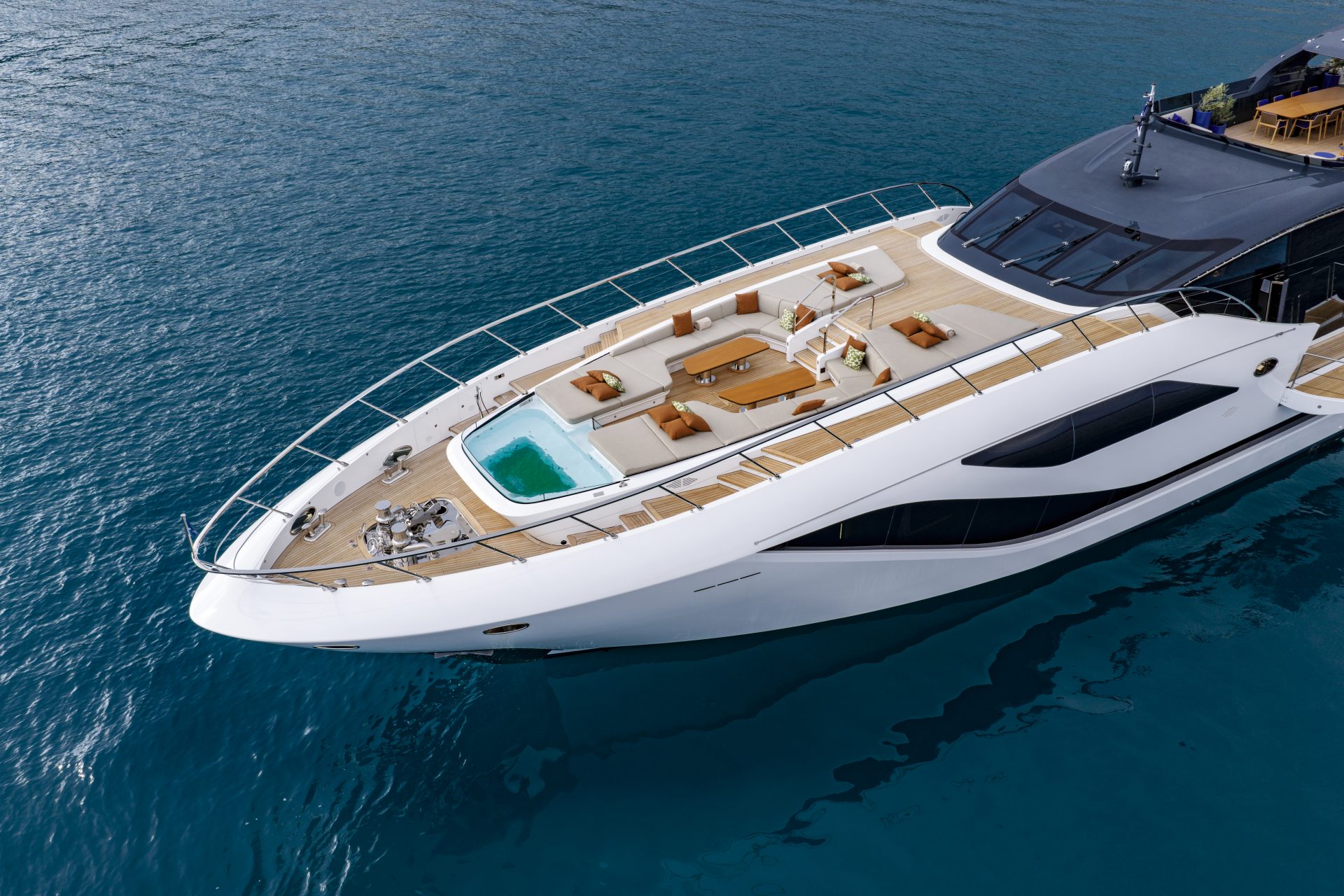

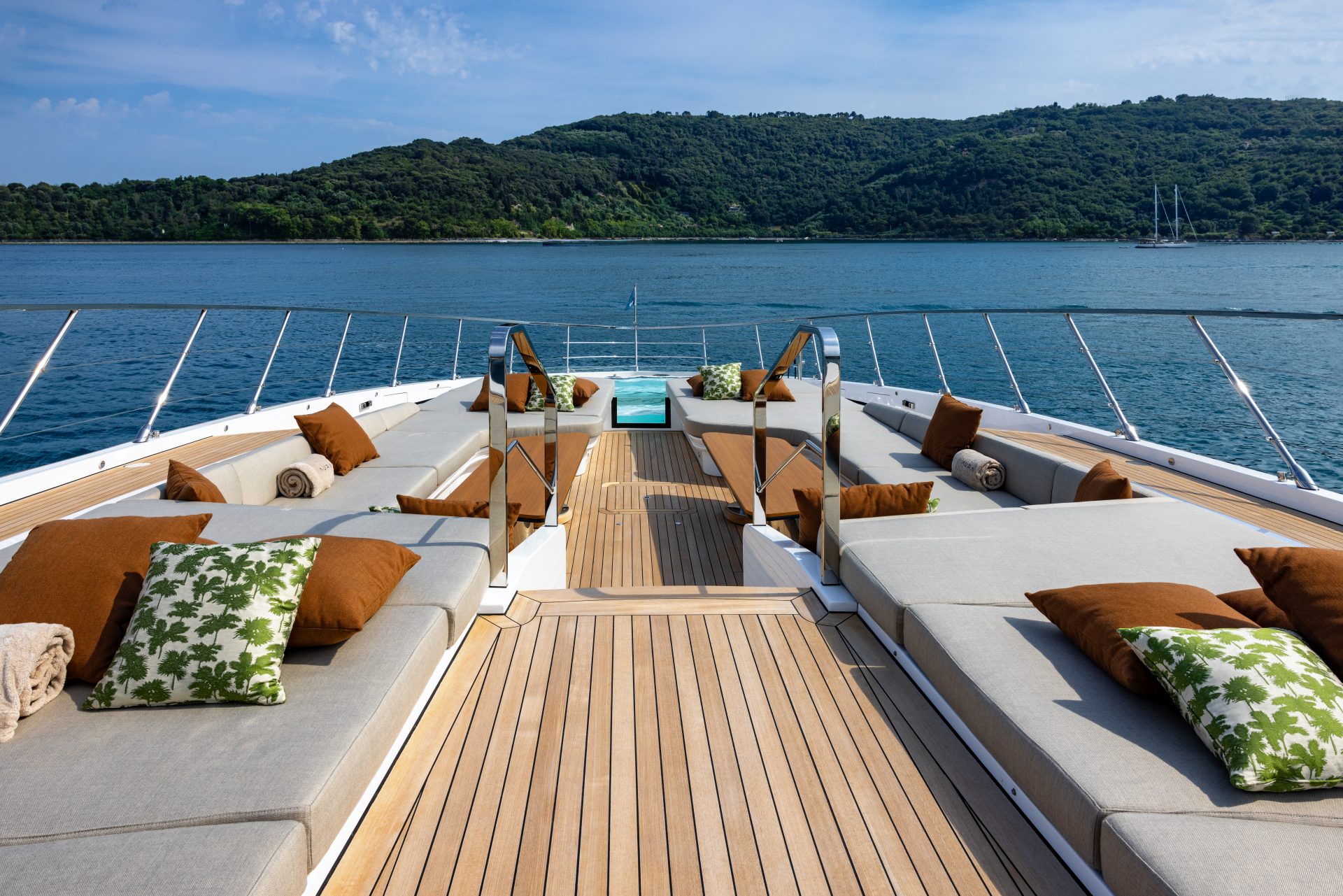

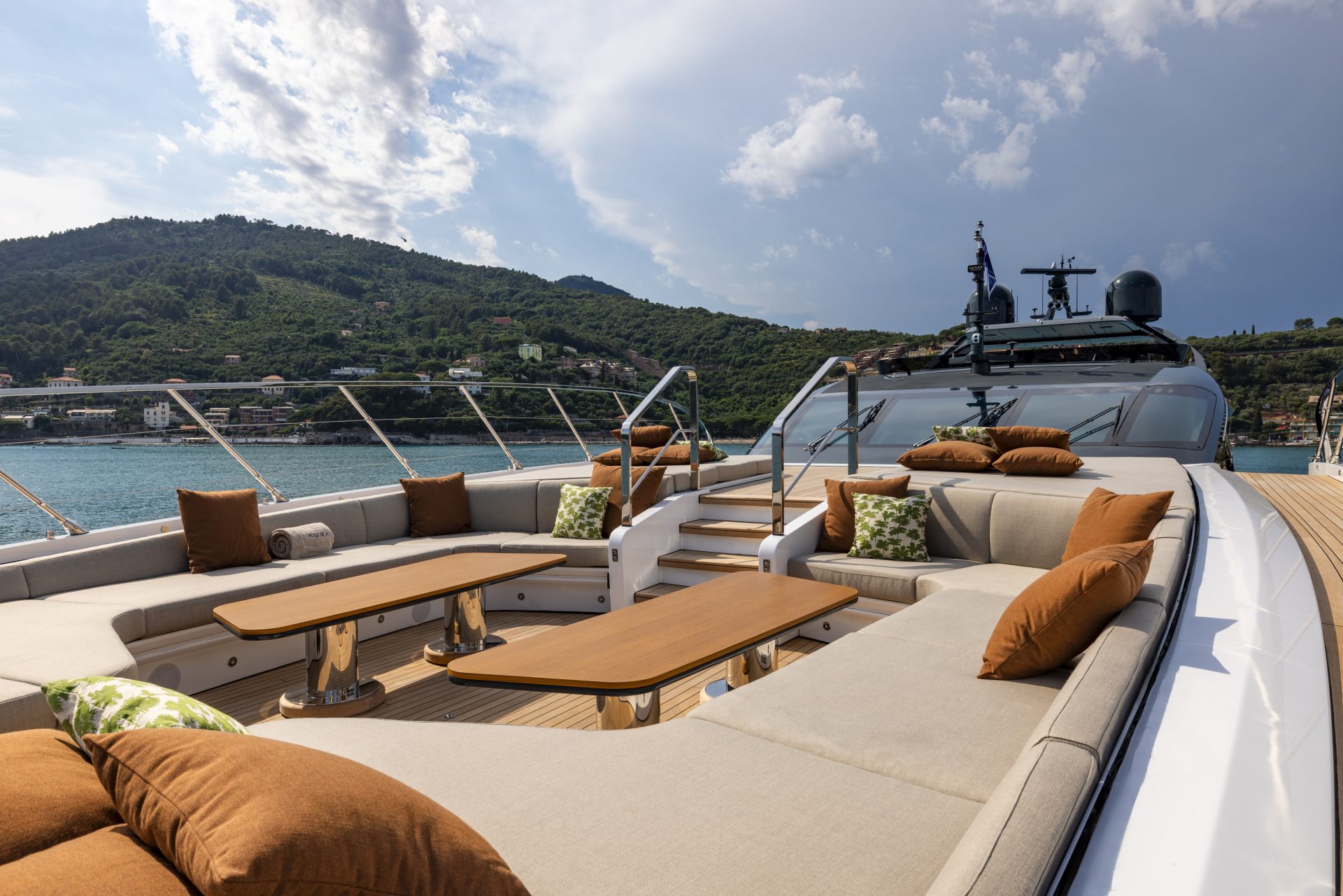

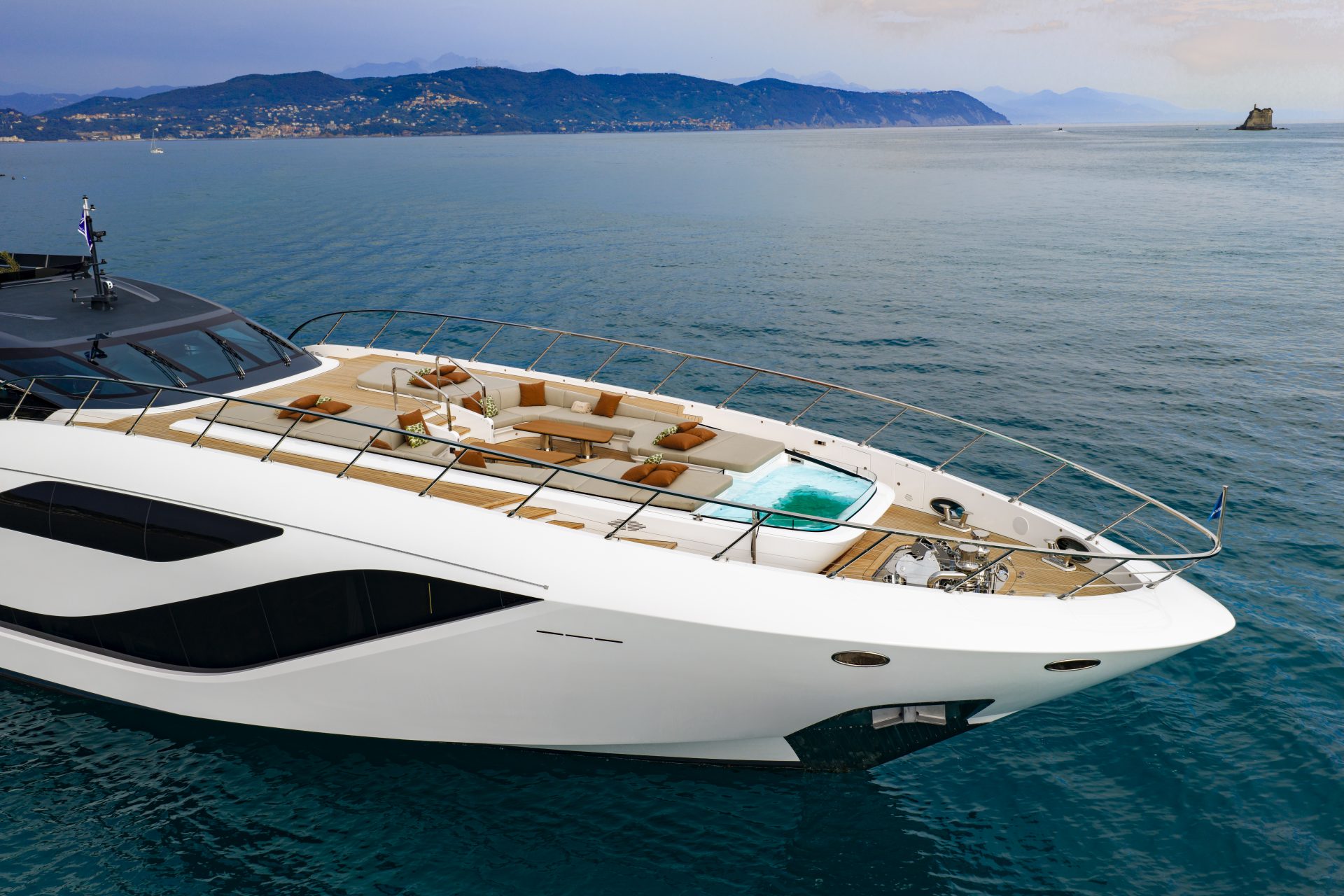

INFINITY POOL - A FLAWLESS CONTINUITY BETWEEN THE YACHTS AND THE OCEAN

The huge forward area will allow guests to indulge in pure relaxation, thanks to a sunbathing area, comfy sofas, and an infinity pool that blends into the sea

FULLY-EQUIPPED BEACH & LOUNGE AREA

At the stern, the aft door opens to reveal a beach club conceived as a fully-equipped lounge area by the sea.
BREATHTAKING VIEW ON THE SEA

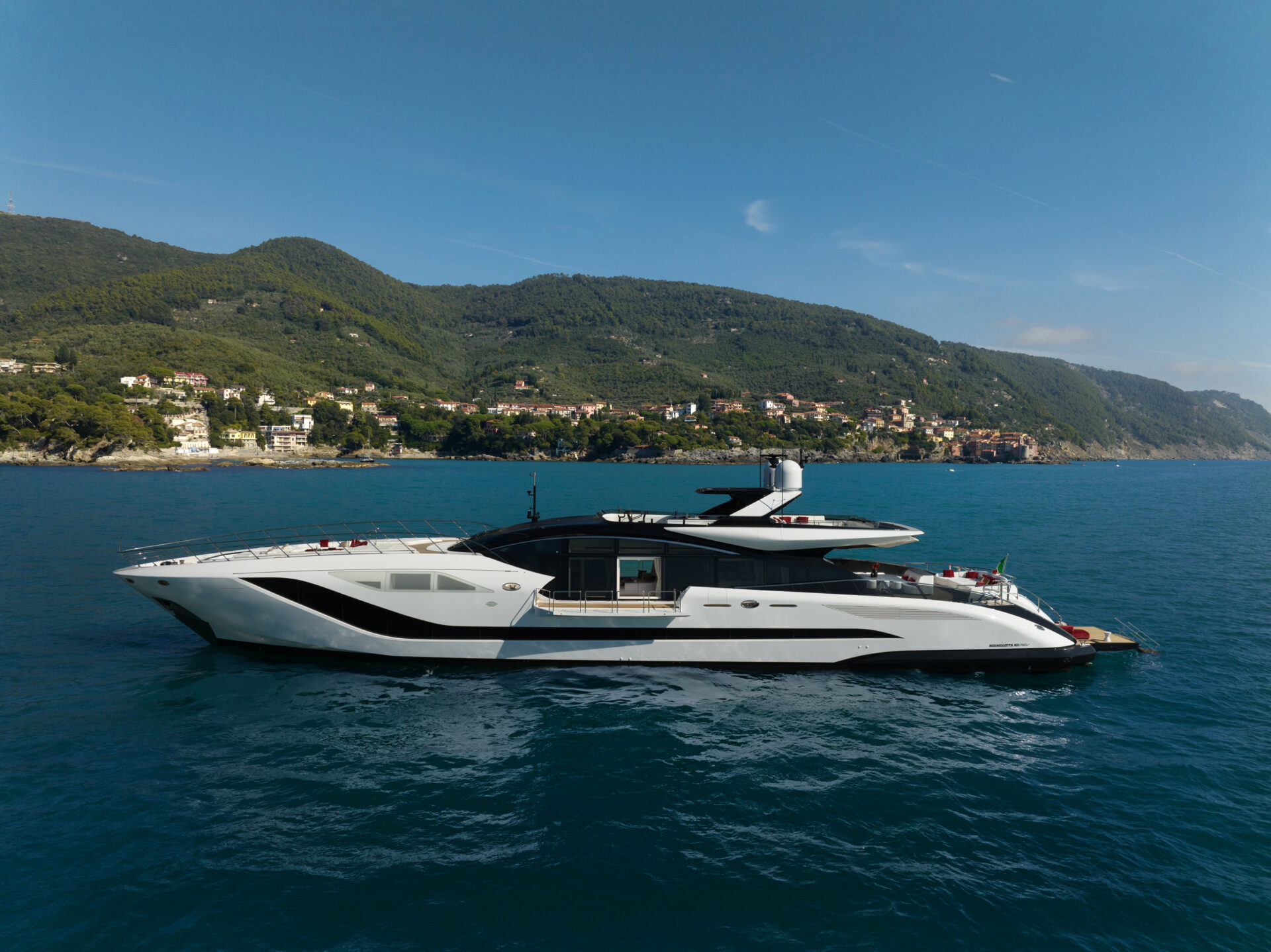

Ceiling high windows, opening up toward the stern and on the sides, where two large fold-down balconies create a smooth continuum between this room and the outdoor areas
AN OPEN-SPACE LOFT

Magnificent full-beam, 92 sq. m (990 sq./ft.) master suite located on the main deck, featuring large, floor-to-ceiling glazed surfaces flawlessly integrated in the hull.
INFINITY POOL - A FLAWLESS CONTINUITY BETWEEN THE YACHTS AND THE OCEAN

The huge forward area will allow guests to indulge in pure relaxation, thanks to a sunbathing area, comfy sofas, and an infinity pool that blends into the sea
