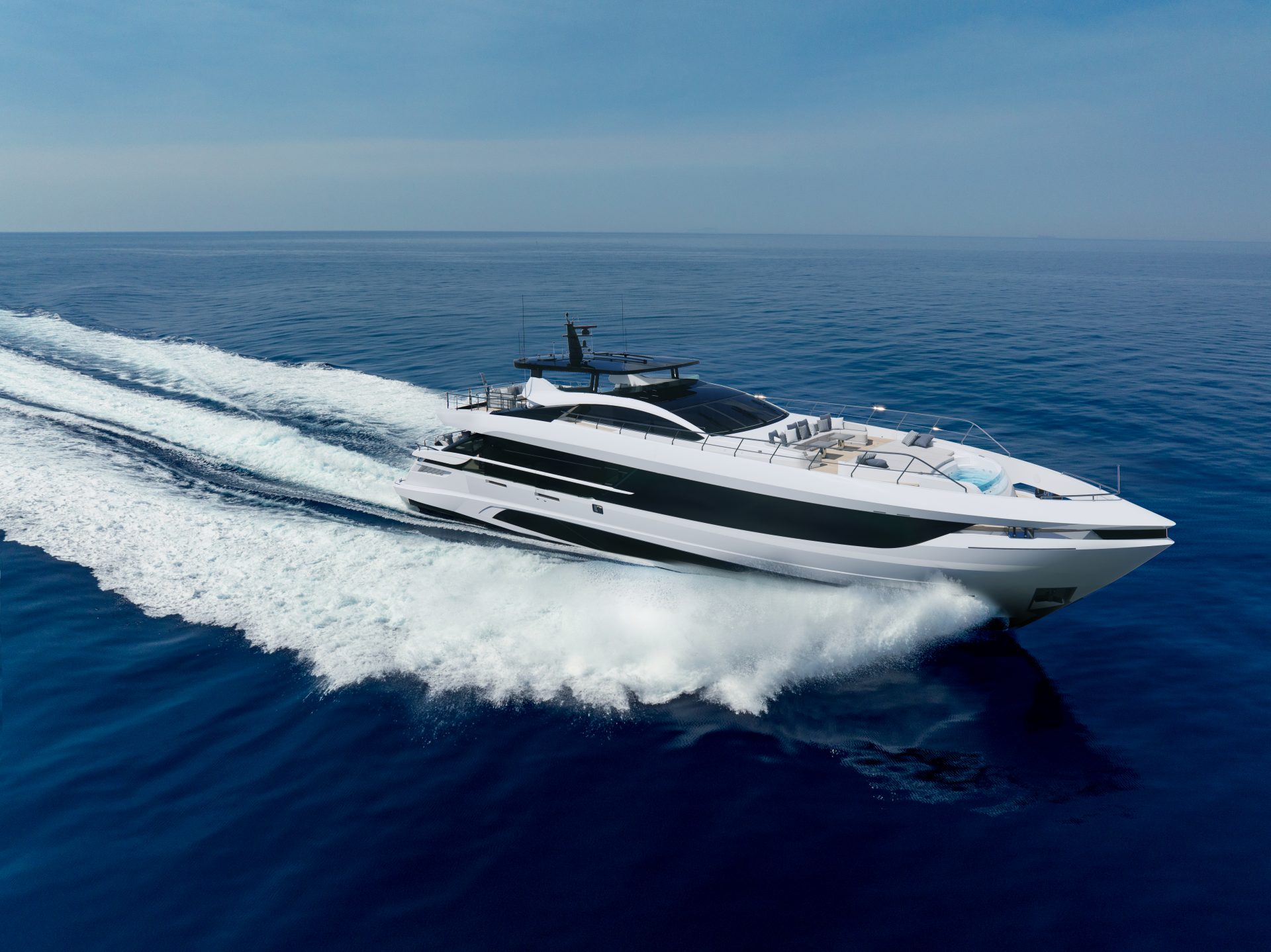

Mangusta GranSport 34
Specs & Performance
CONSTRUCTION
- Hull
- SINGLESKIN COMPOSITE
- Superstructure
- SANDWICH COMPOSITE
DIMENSIONS
- Length Overall
- 33.9 M / 111'22''
- Beam
- 7.4 M / 24'3''
- Max Draft
- ~ 2 M / 6'6''
- Displacement at full load
- ~ 145 T / 340,000 LBS
- Displacement at half load
- ~ 135 T / 297,630 LBS
- Gross tonnage
- 240 GT
TANK CAPACITY
- Fuel Capacity
- ~ 10,500 L / 2,780 US GALS
- Water capacity
- ~ 2,000 L / 530 US GALS
PROPULSION
- Main engines power
- 4 X VOLVO PENTA D13 - 1000 IB - 1000 HP @ 2400 RPM (735 kW)
- Transmission
- 4 X VOLVO PENTA IPS PODS 1350
- Stabilizers
- ZERO SPEED AND UNDERWAY
PERFORMANCE
- Max speed half load
- ~ 24 KNOTS
- Cruising Speed half load
- ~ 20 KNOTS
- Range at cruising speed
- ~ 300 NAUTICAL MILES
ACCOMMODATION
- Guests
- UP TO 12 IN 5 CABINS
- Crew
- 5 IN 3 CABINS
DESIGNERS
- Exteriors
- ALBERTO MANCINI / OVERMARINE GROUP
- Interiors
- OVERMARINE GROUP - CUSTOM INTERIORS AVAILABLE

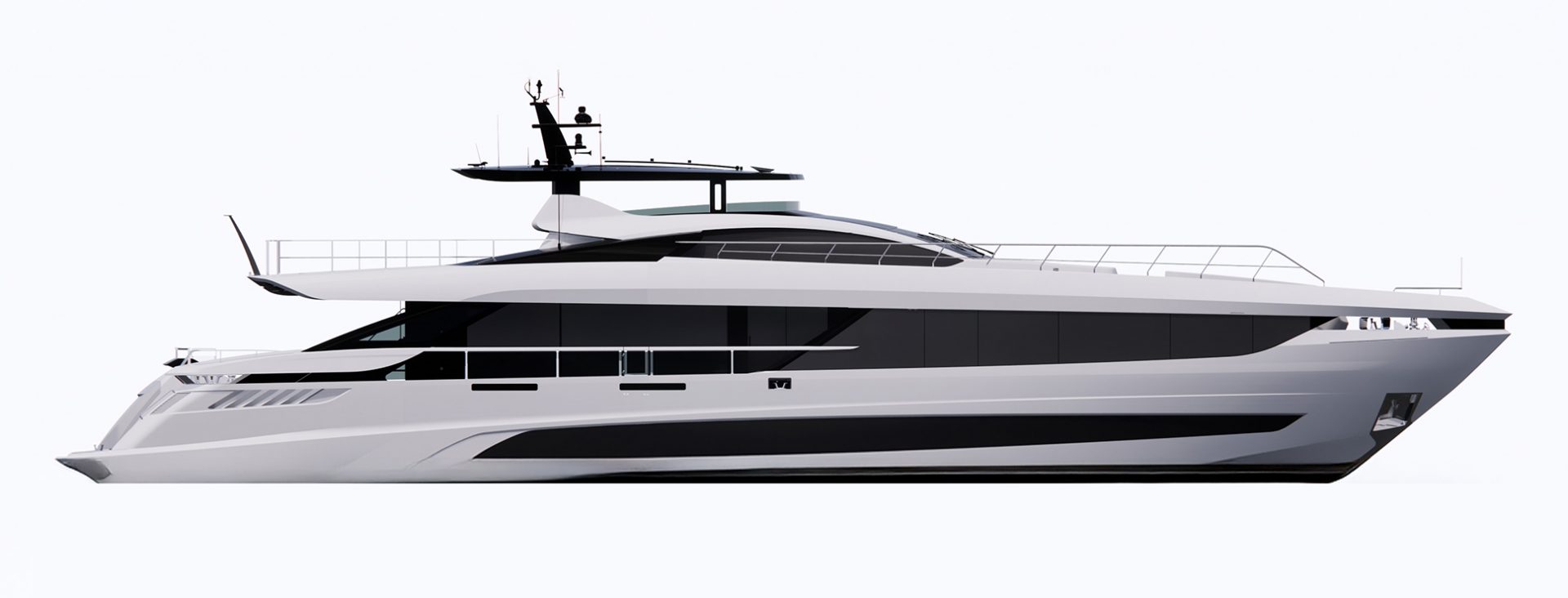

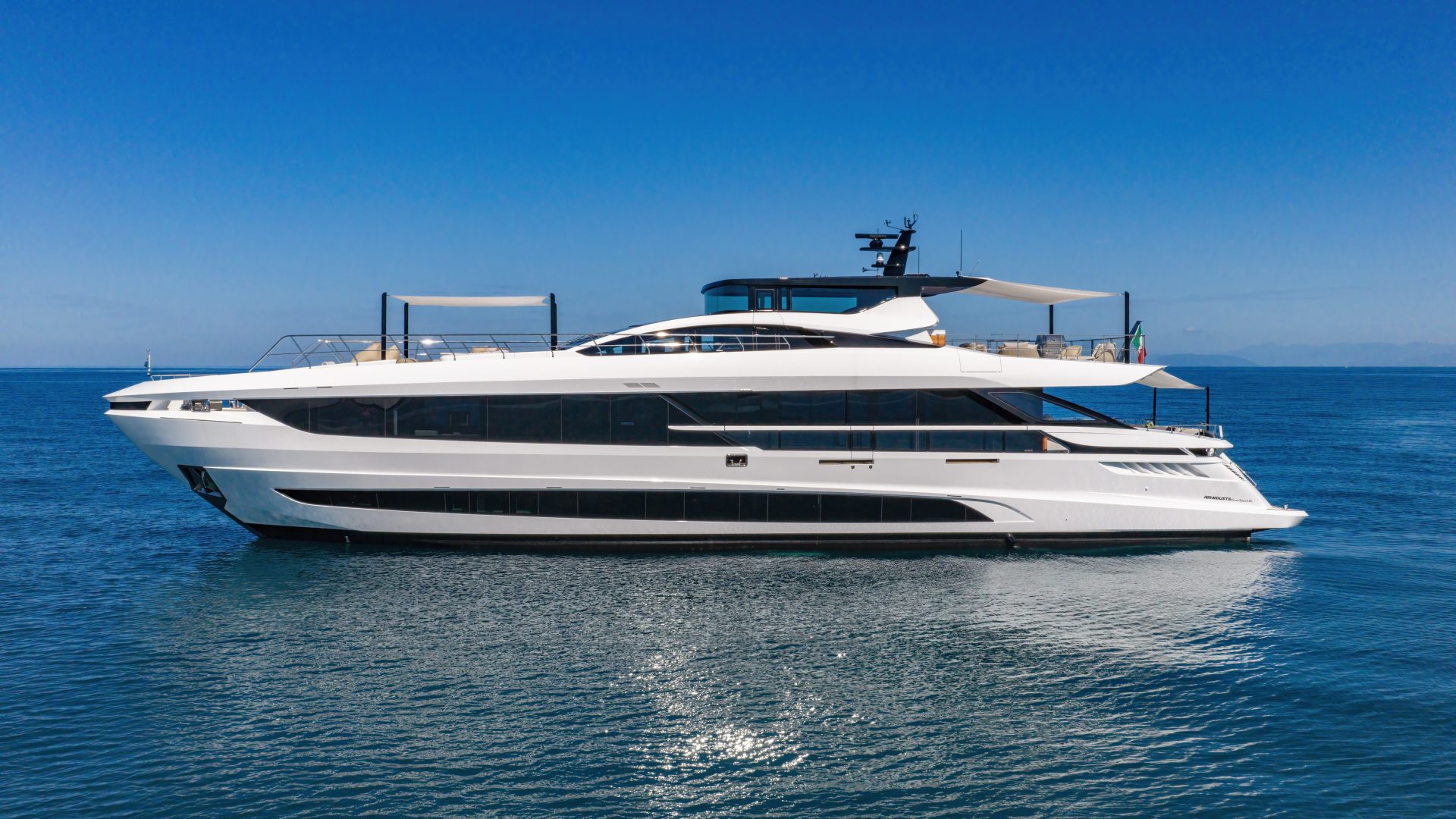

PROFILE

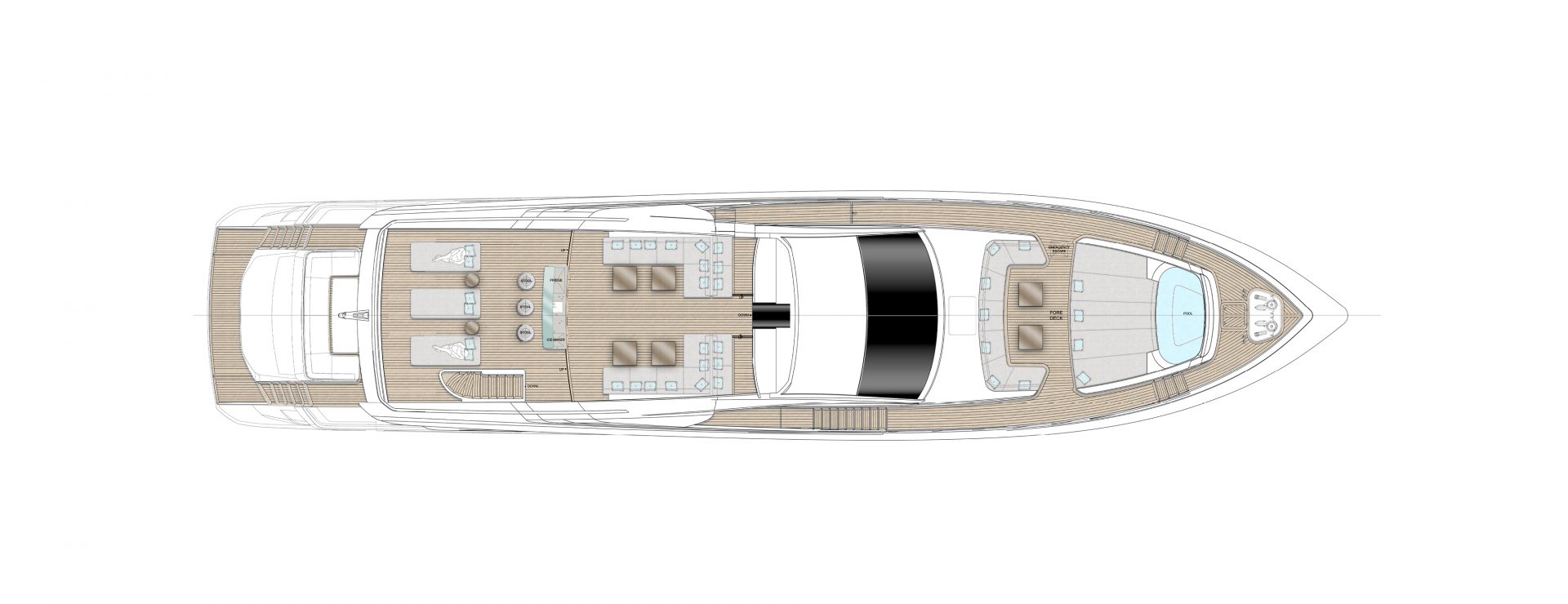

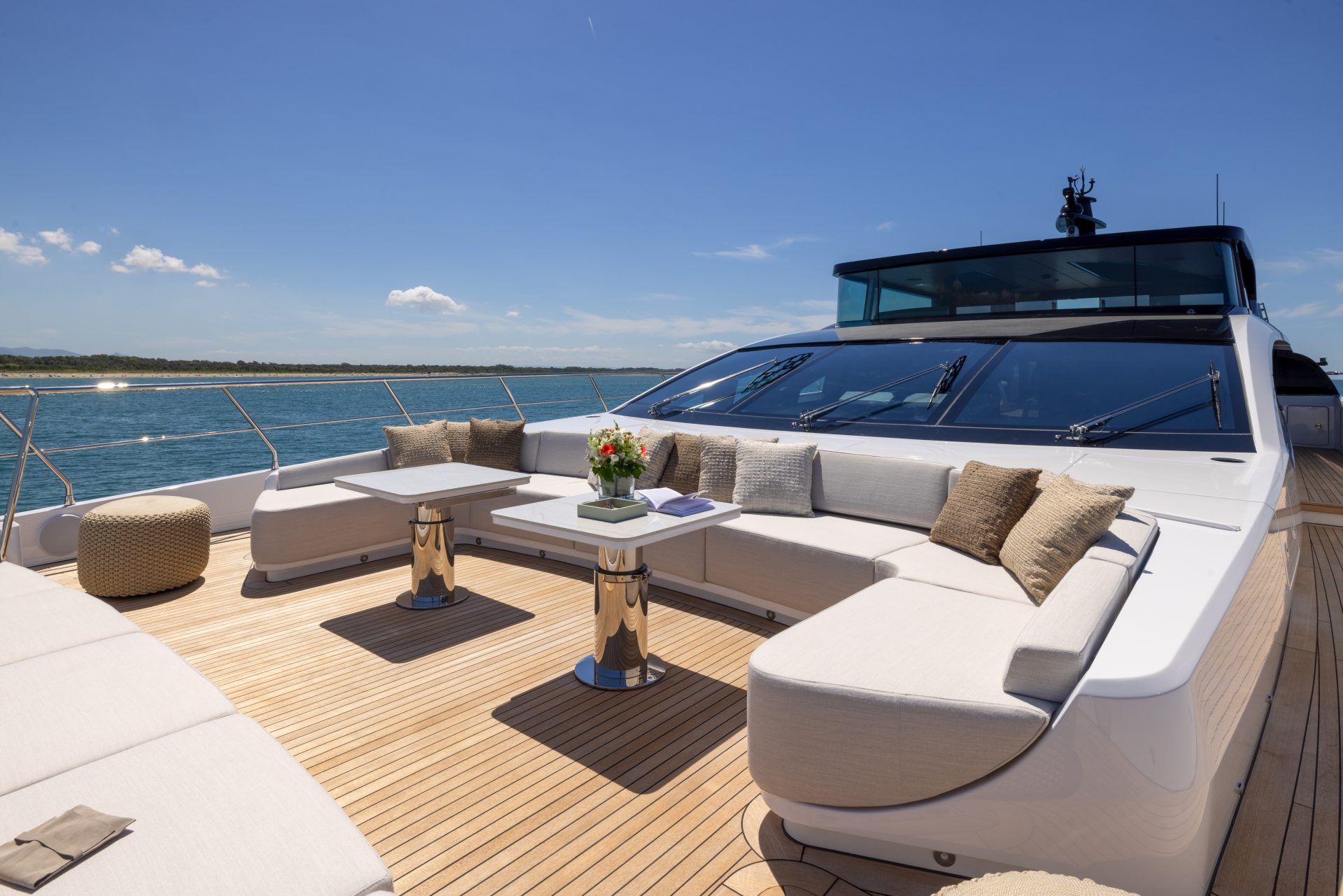

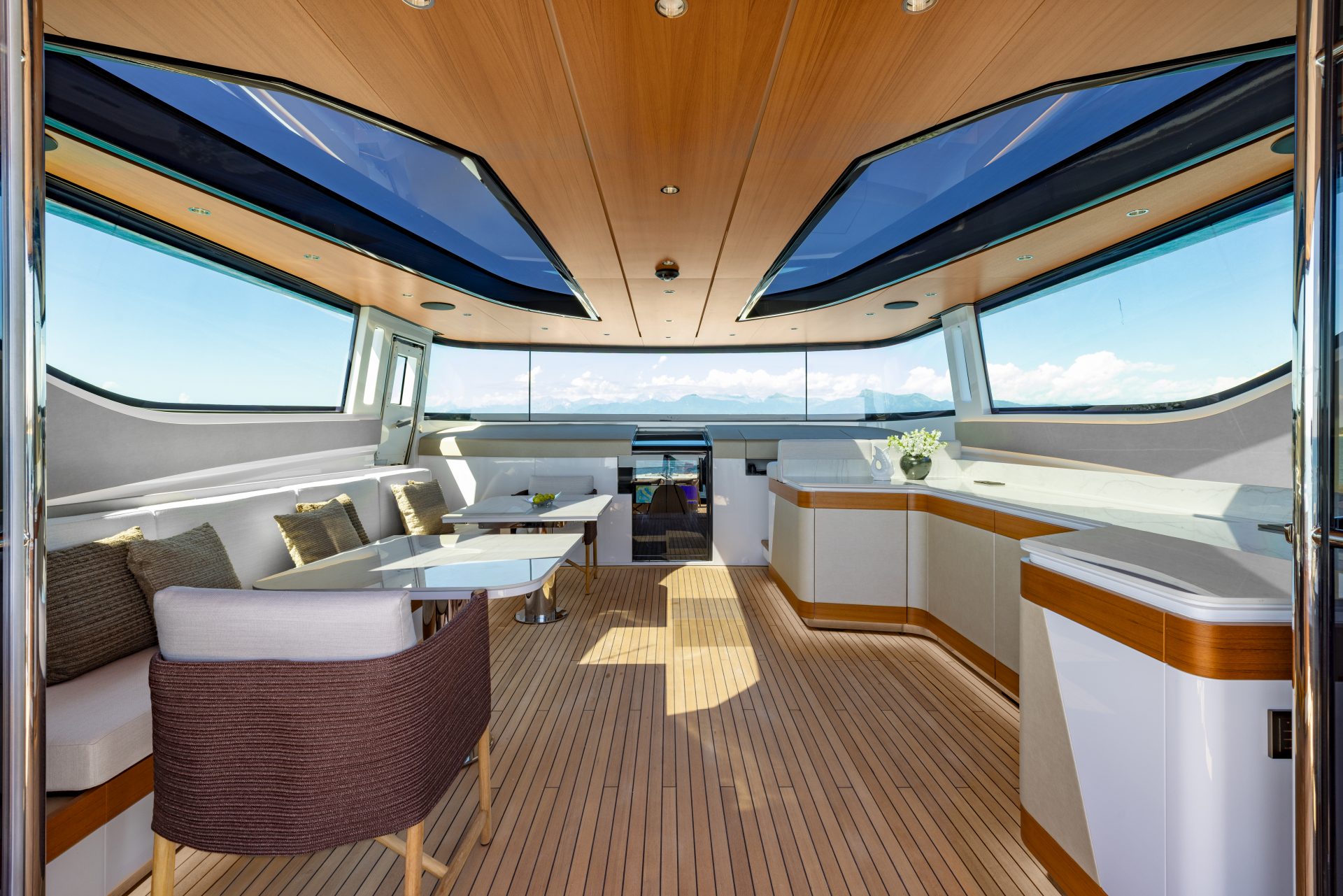

SUN DECK

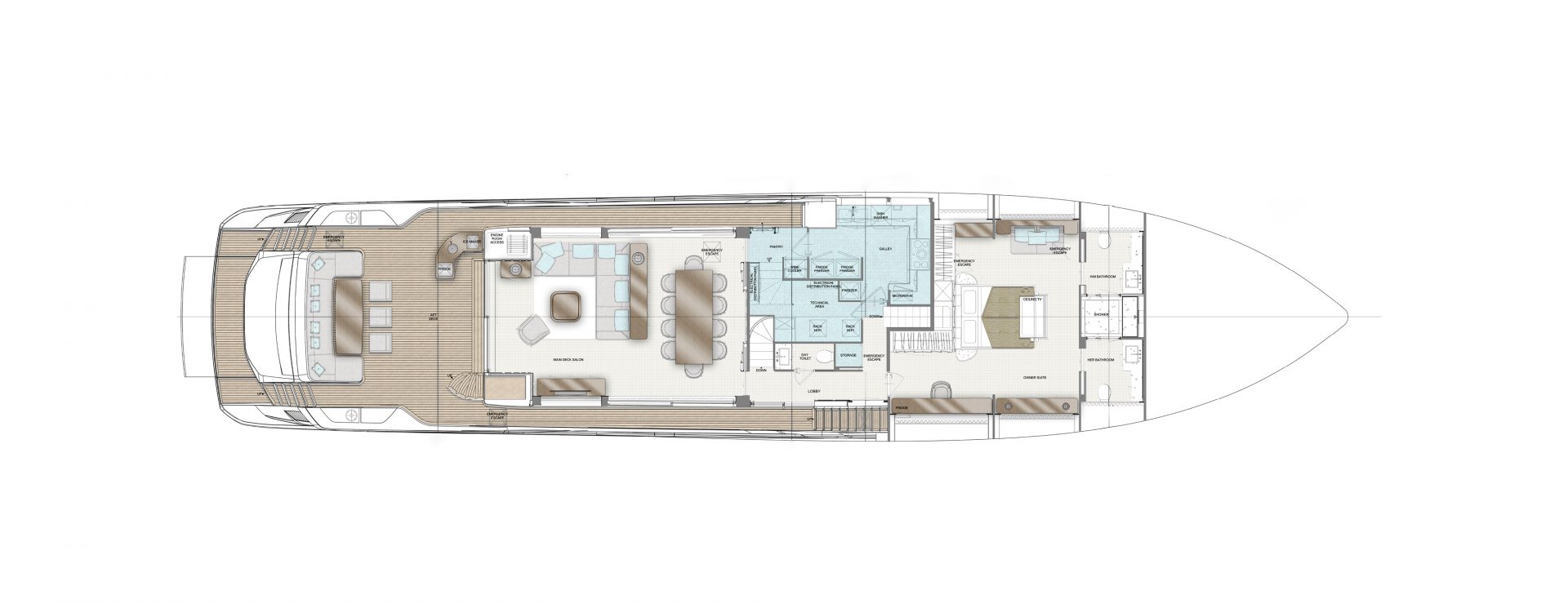

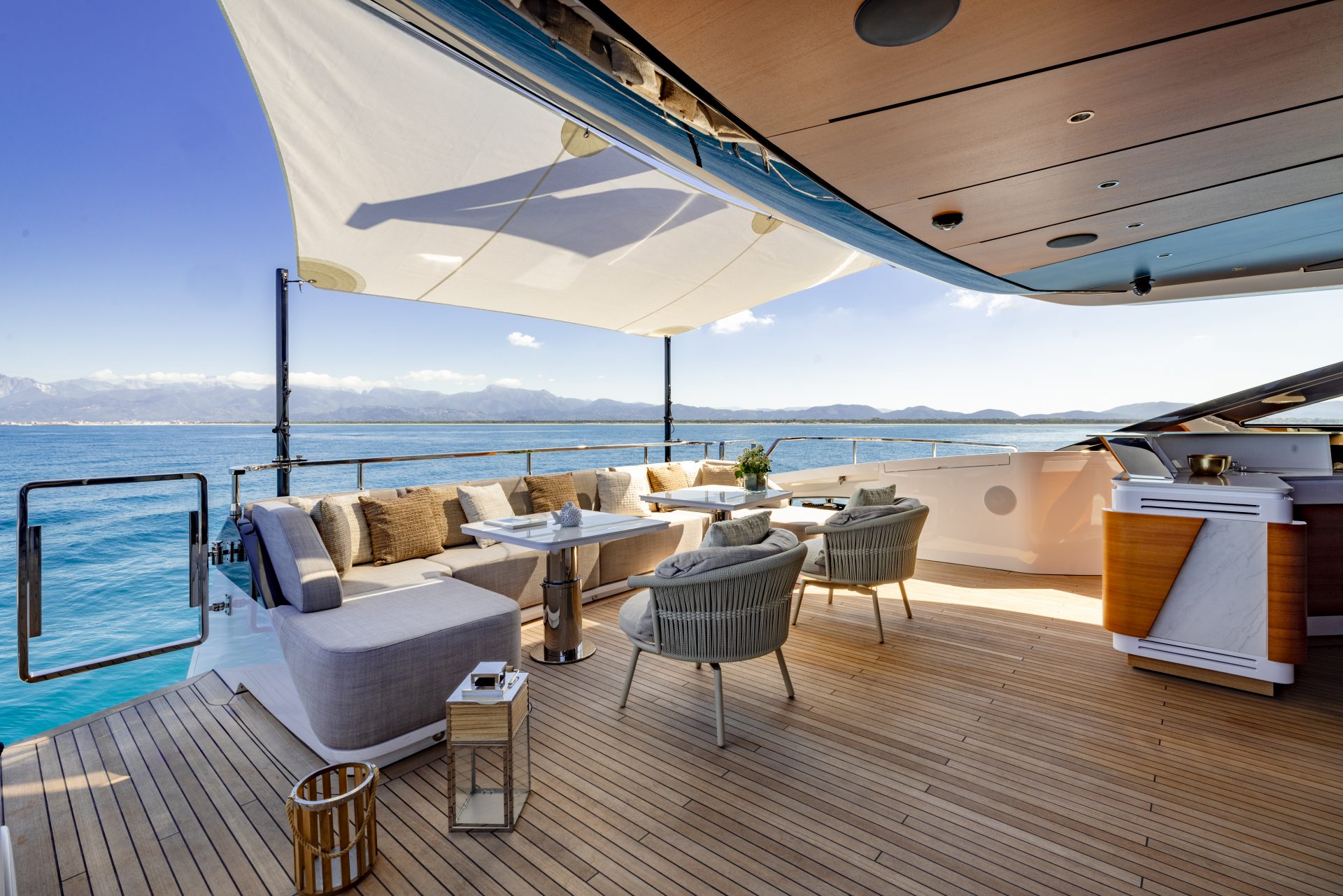

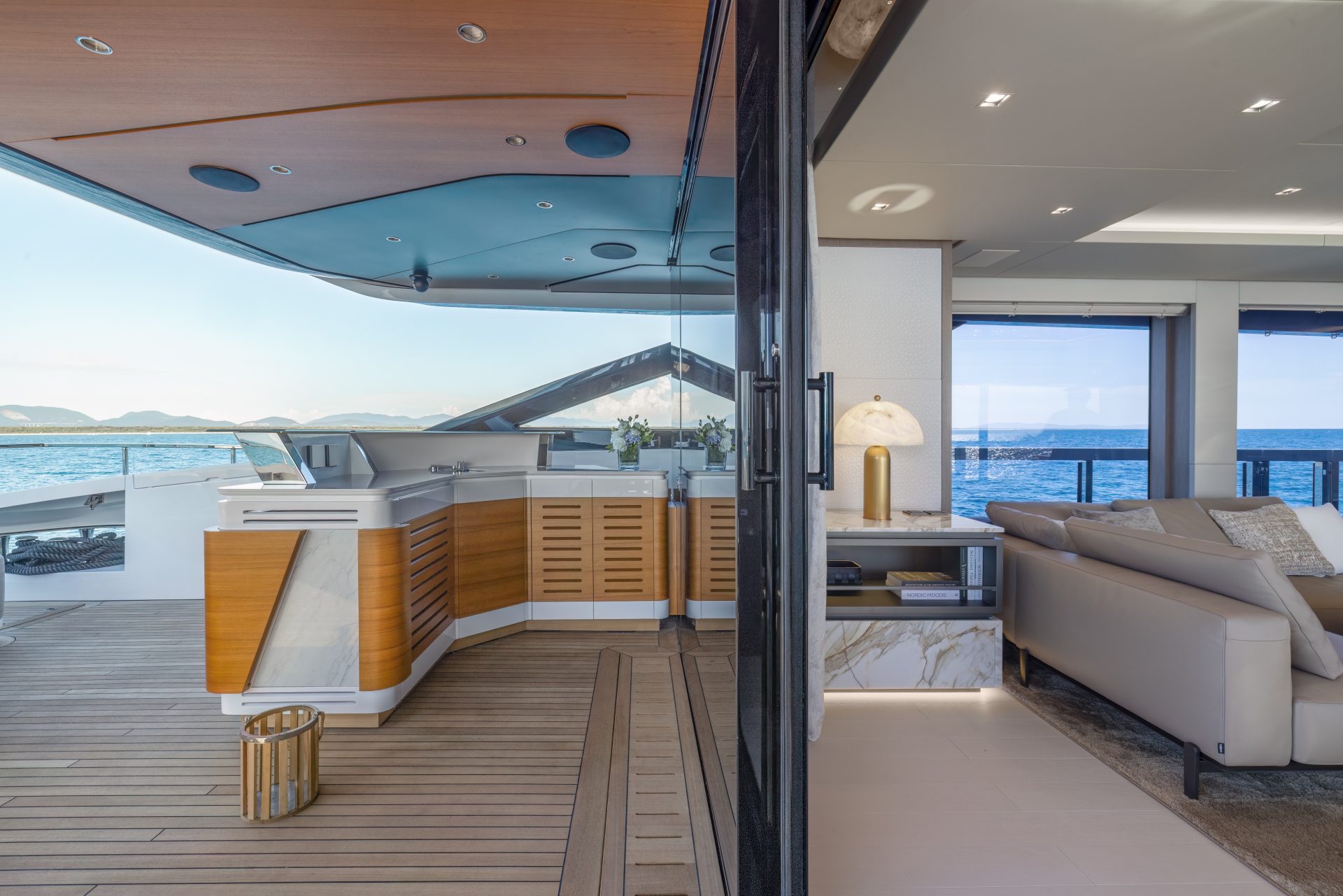

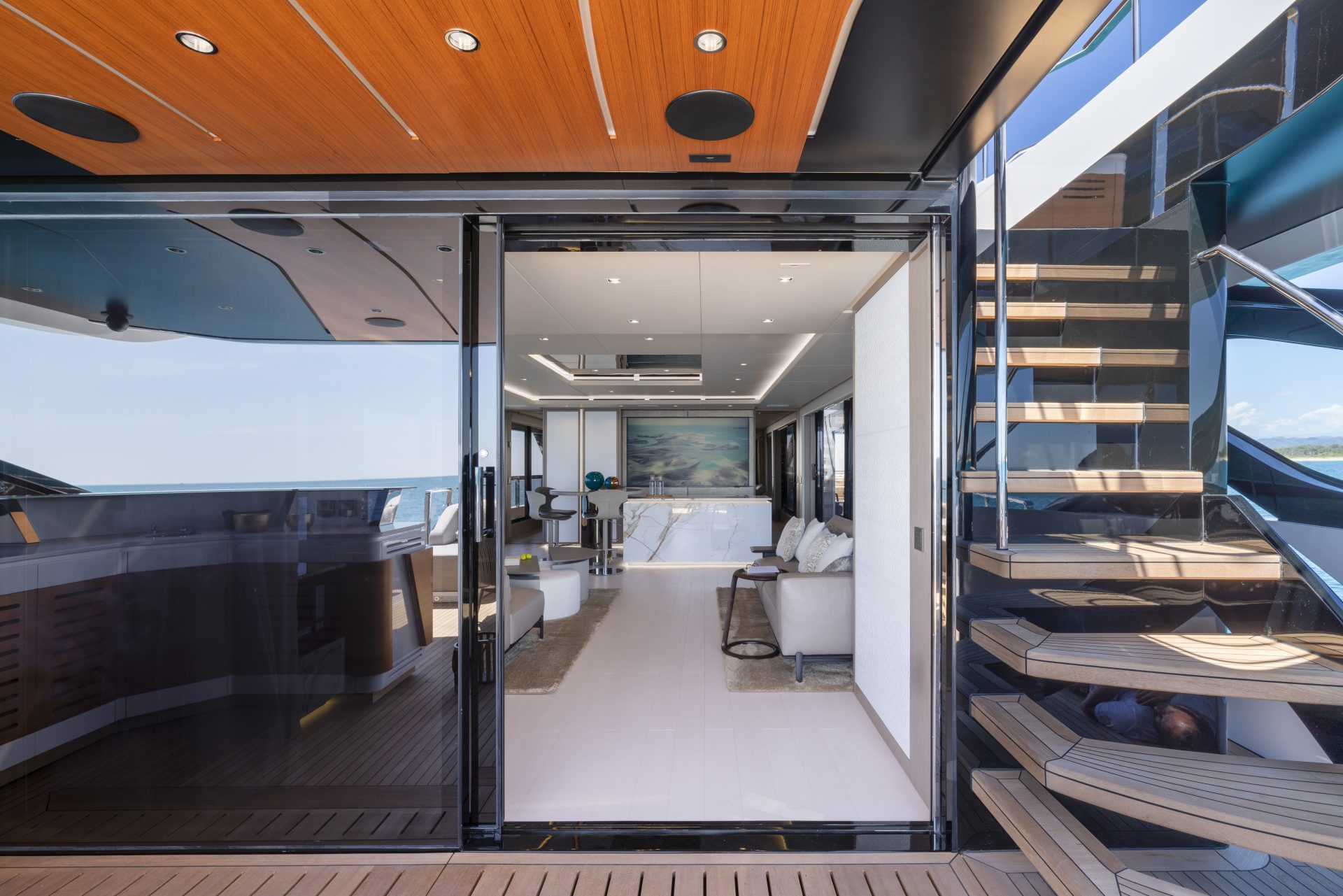

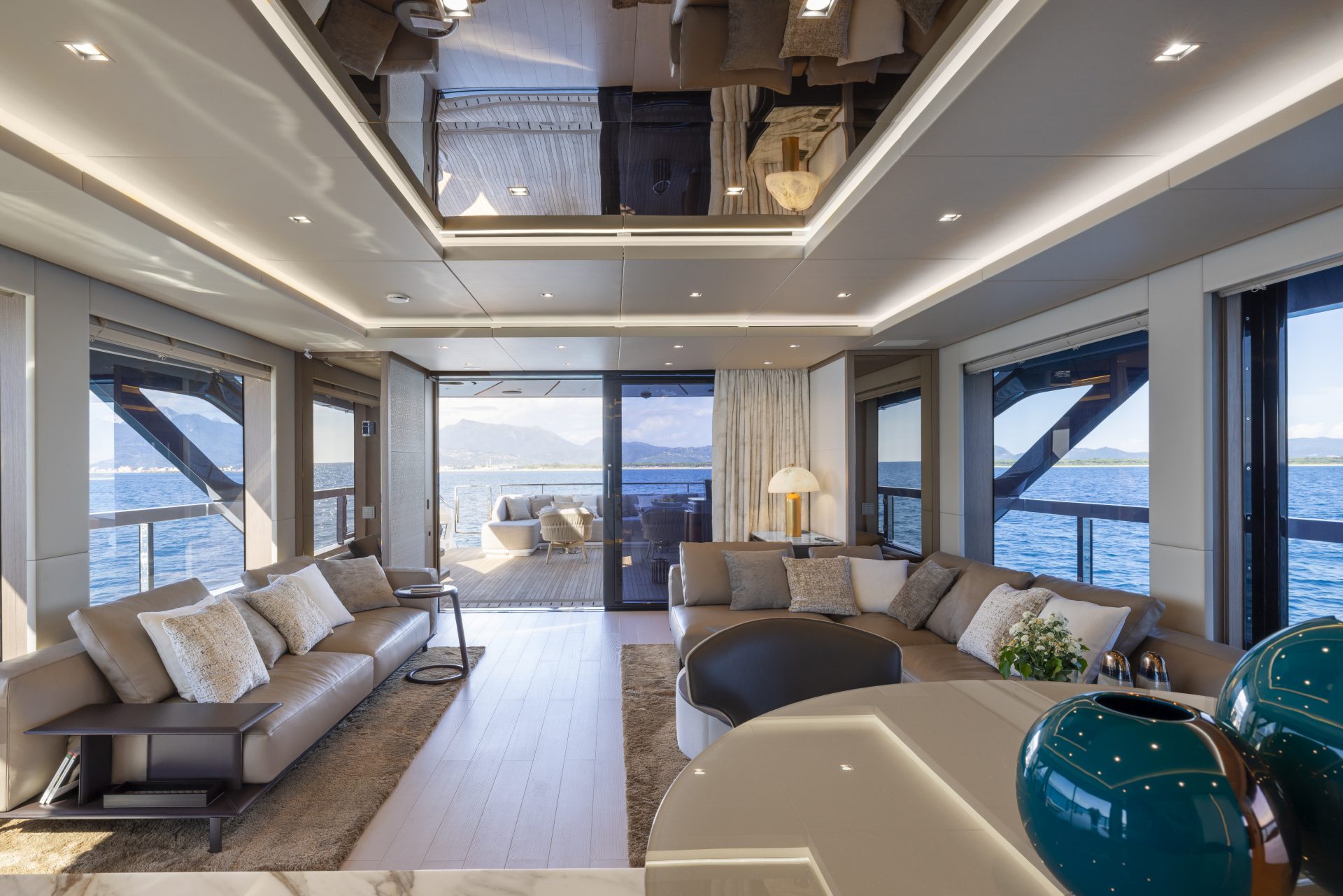

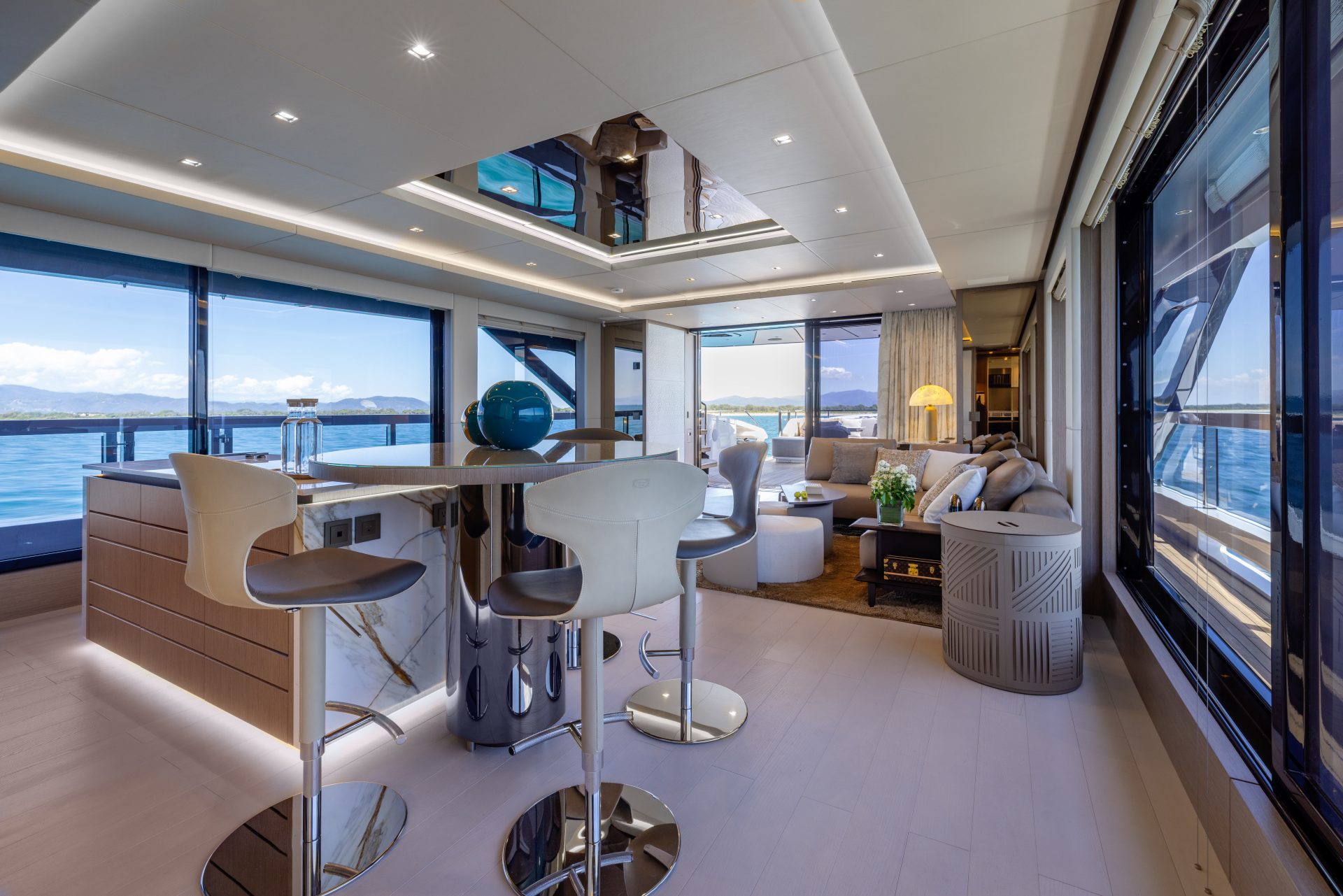

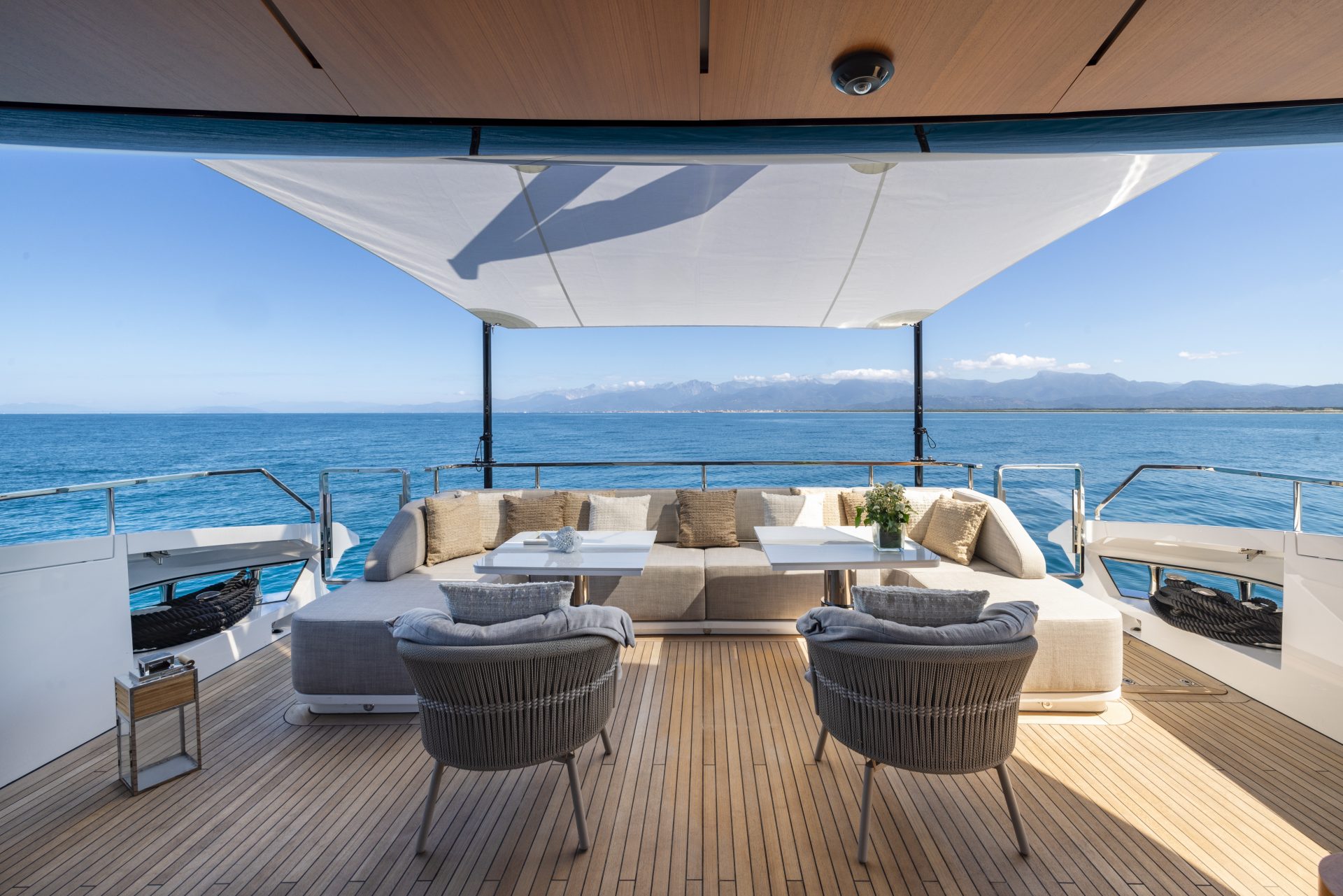

MAIN DECK

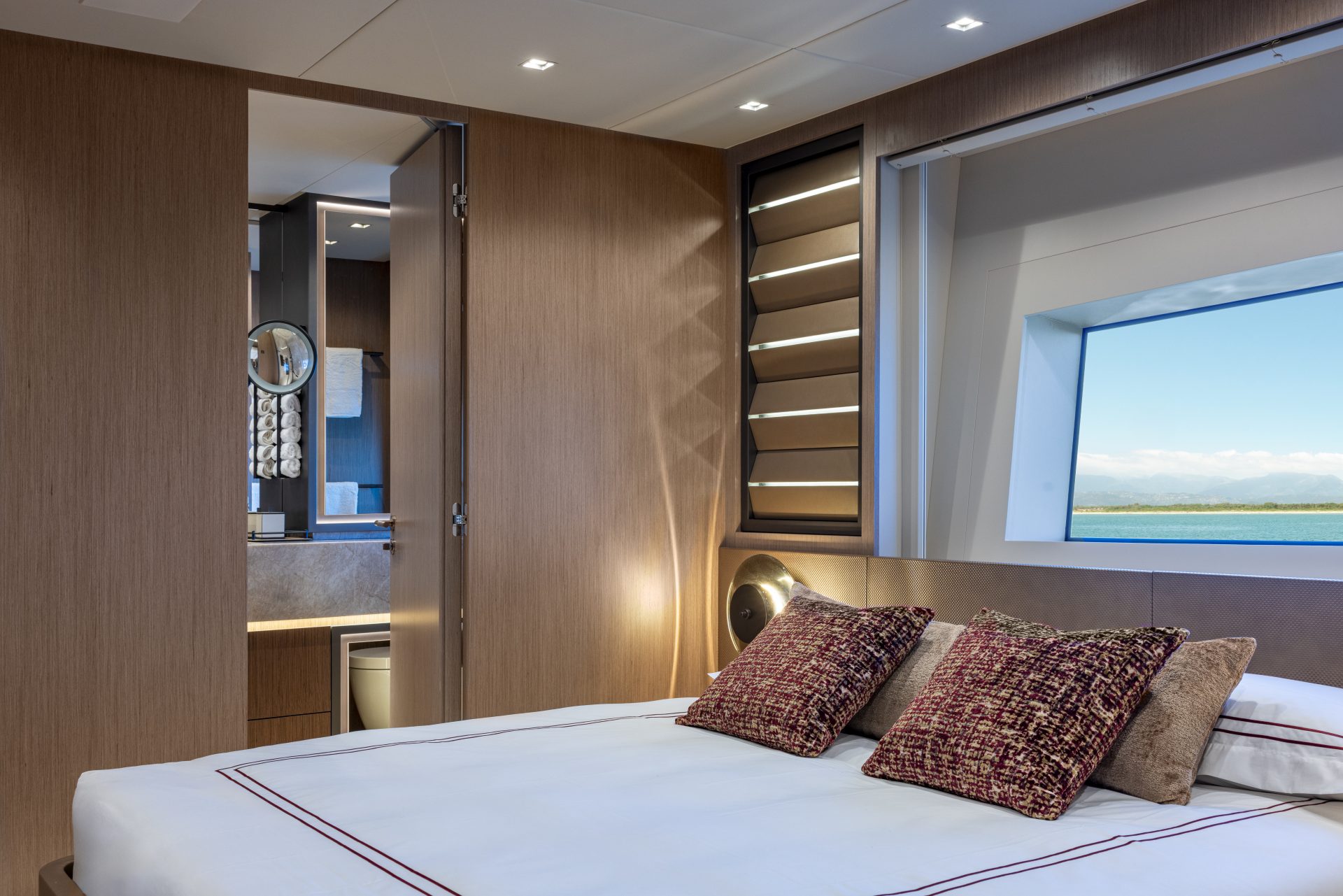

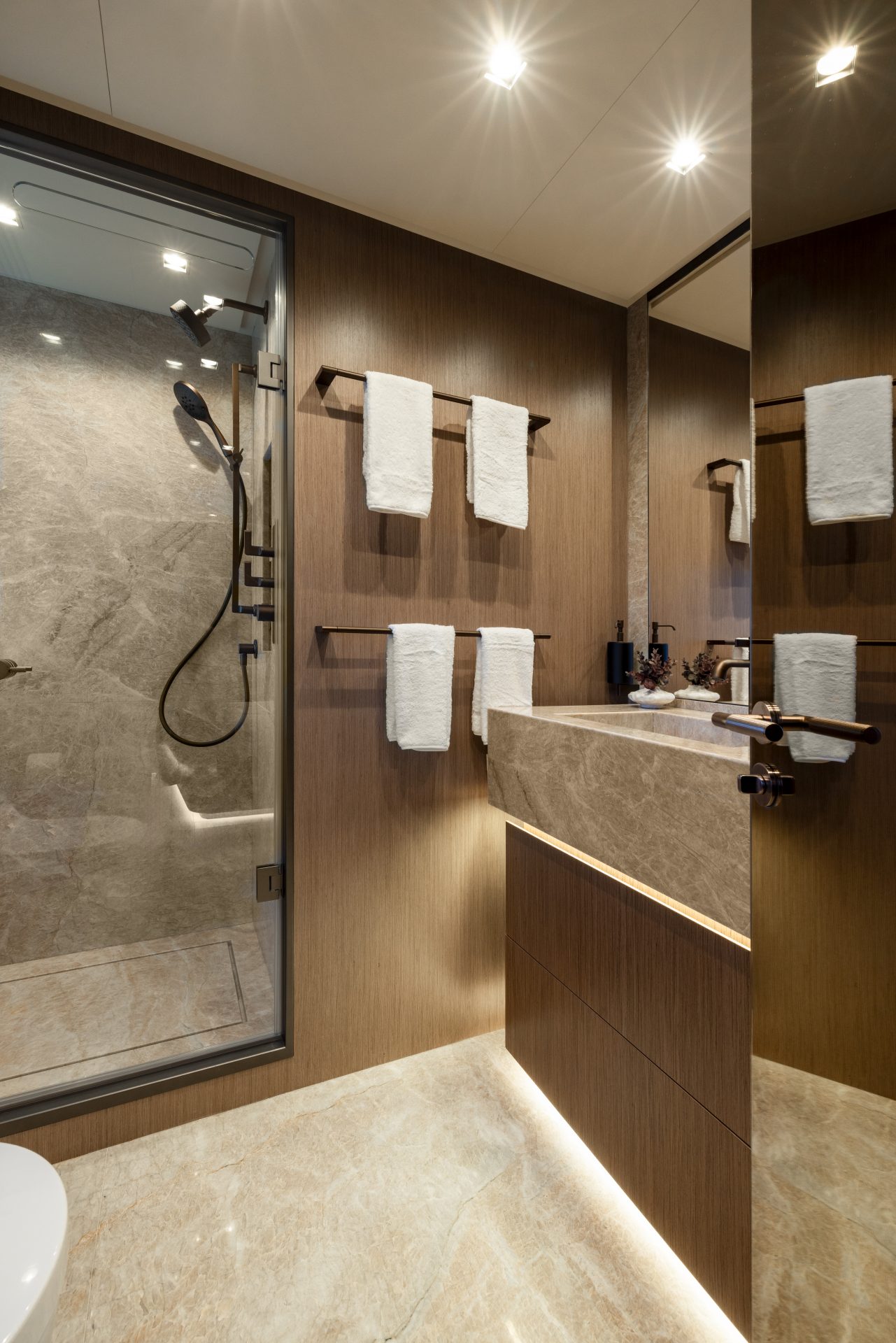

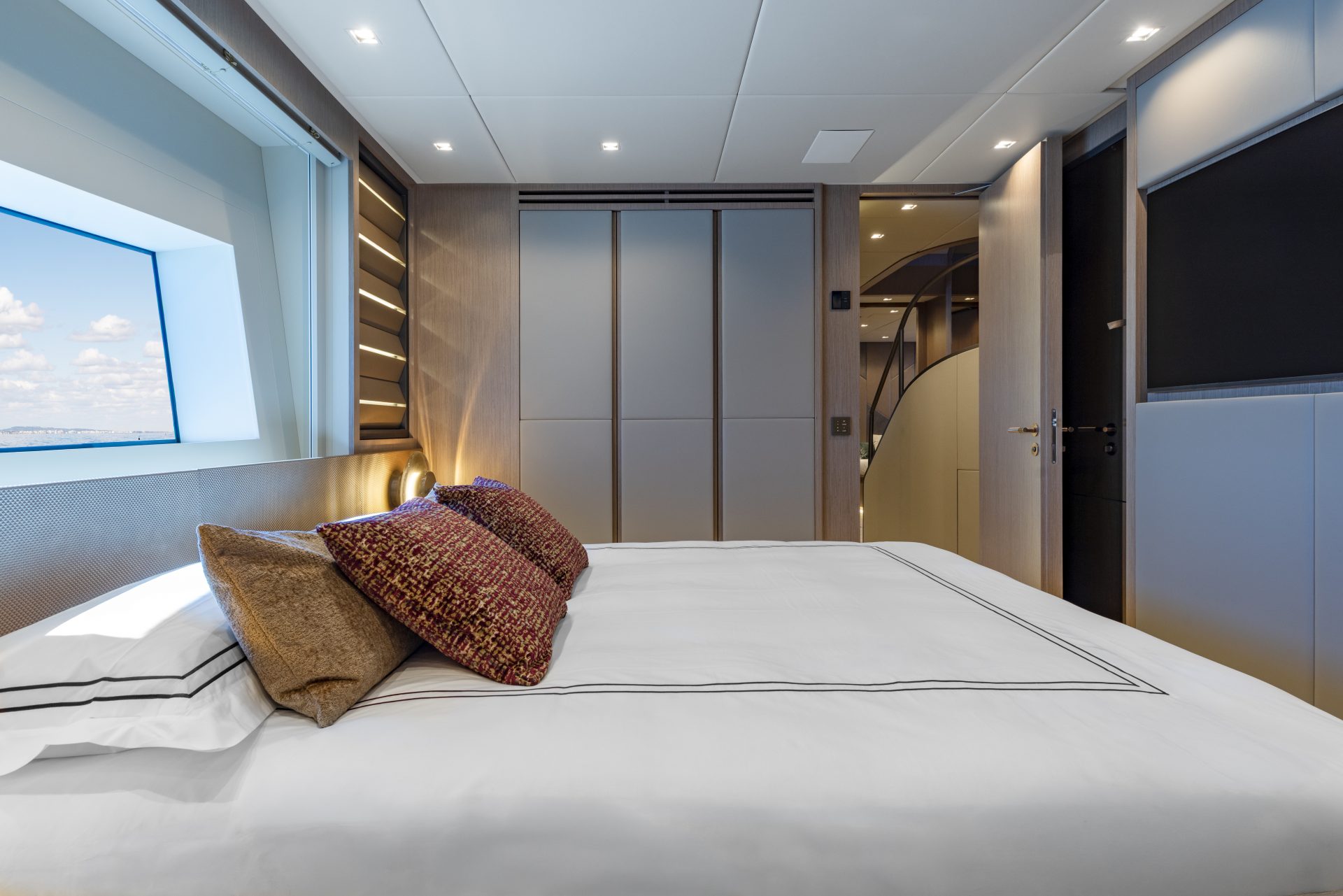

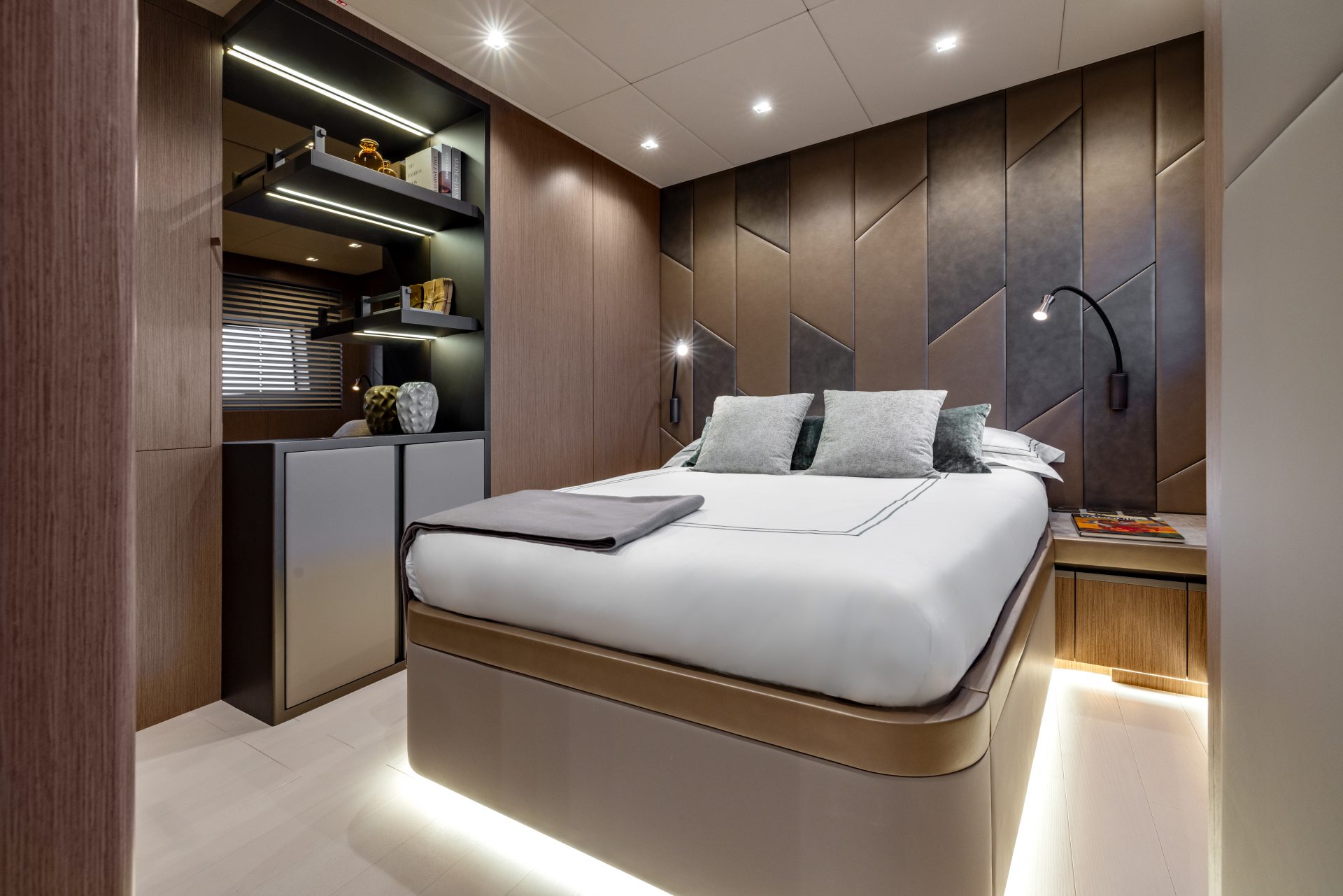

LOWER DECK
