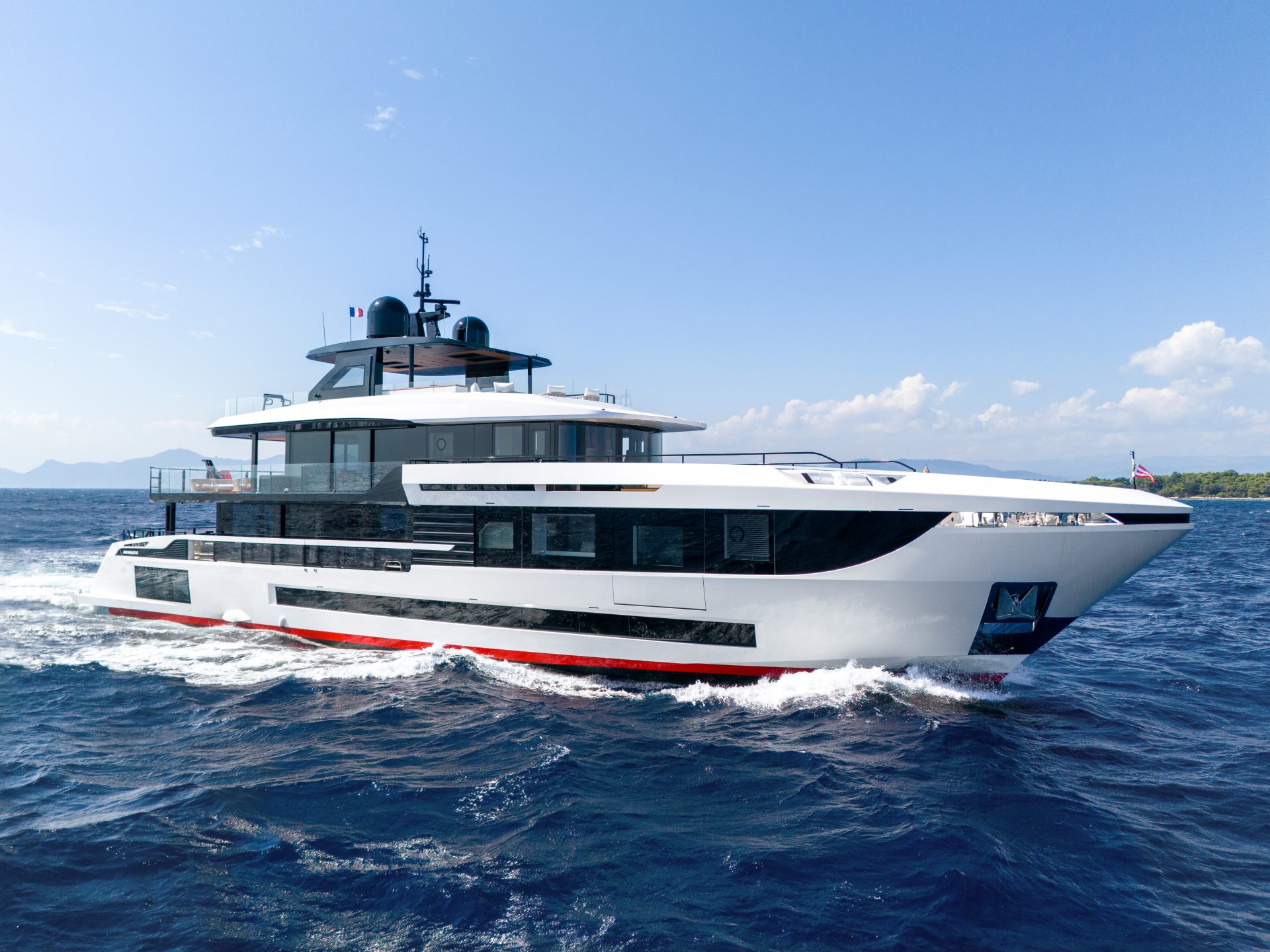

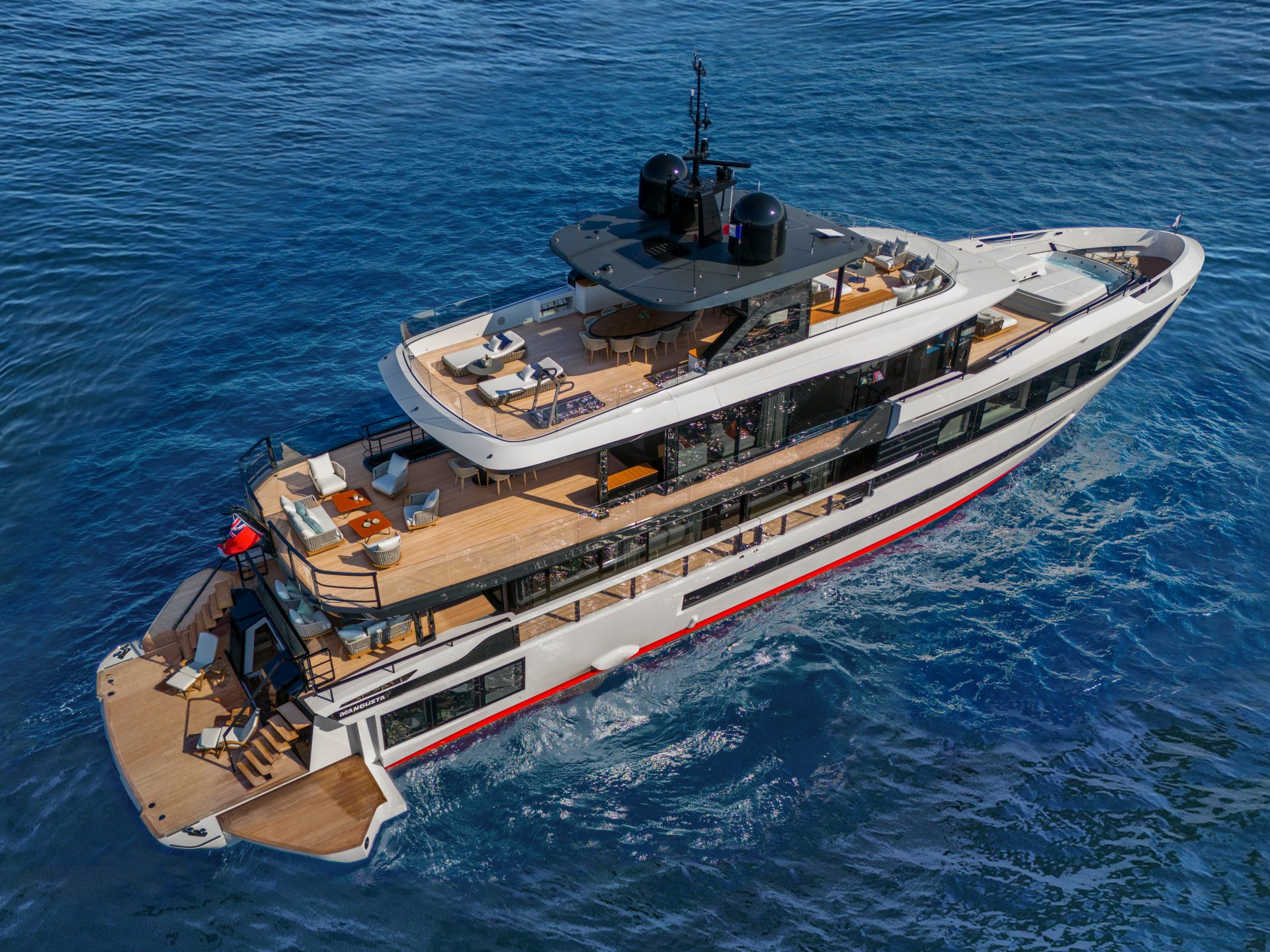

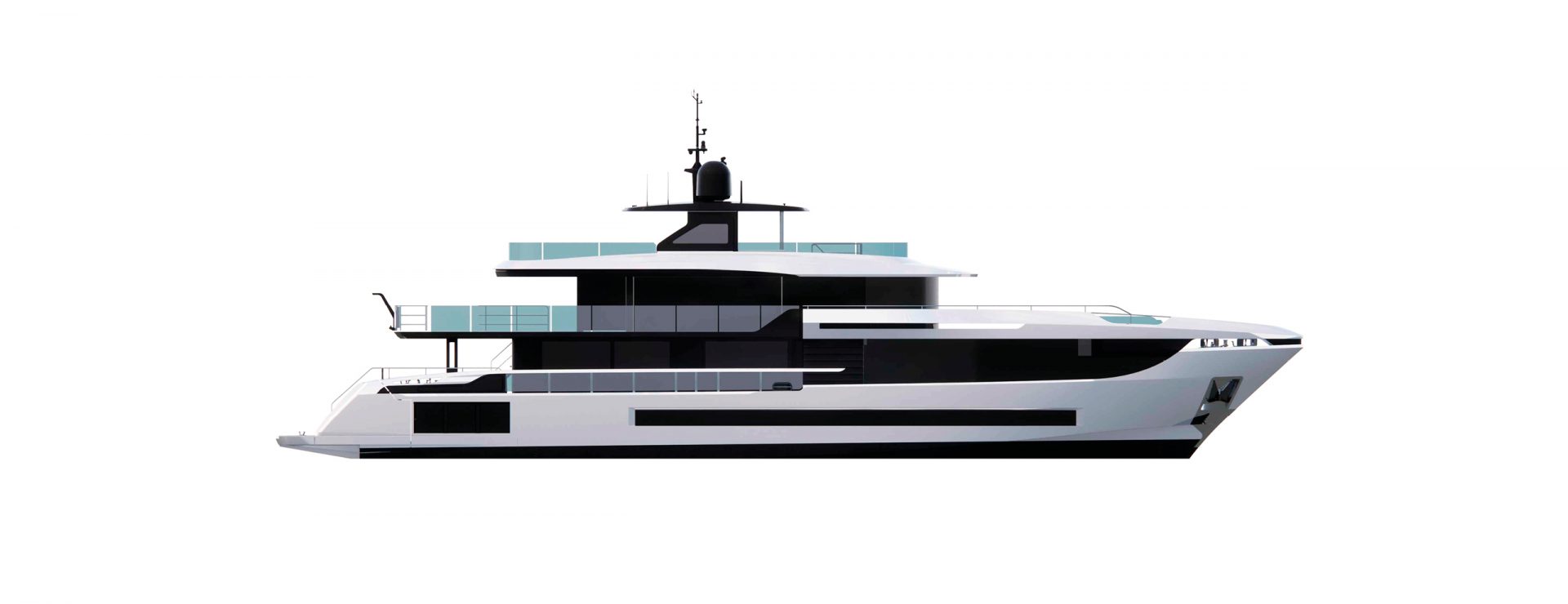

Mangusta Oceano 39

Specs & Performance

Construction

Hull
SINGLESKIN COMPOSITE
Superstructure
CARBON FIBER

Dimensions

Length Overall
~ 39.20 M / 128'
Beam
~ 8.50 M / 28’
Half Load Draft
~ 2.3 M / 7'7''
Displacement at full load
~ 240 T / 529,110 LBS
Displacement at half load
~ 227 T / 500,450 LBS
Gross Tonnage
~ 324 GT

Tank capacity

Fuel Capacity
~ 32,000 L / 8,450 US GALS
Water capacity
~ 4,000 L / 1,060 US GALS

Propulsion

Main engines power
2 X MTU 12V 2000 M86 1700 HP @ 2450 RPM (1268 kW)
2 X MTU 16V 2000 M96L 2600 HP @ 2450 RPM (1939 Kw)
Transmission
2 SHAFT LINES WITH FIXED PITCH PROPELLER
Stabilizers
ZERO SPEED AND UNDERWAY

Performance

Max speed
~ 15 KNOTS - M86
~ 20 KNOTS - M96L
Cruising speed
~ 12 KNOTS - M86
~ 16 KNOTS - M96L
Economical speed
10 KNOTS - M86
10 KNOTS - M96L
Range at economical speed
~ 2250 NM - M86
~ 2100 NM - M96L

Accommodation

Guests
UP TO 12 IN 5 CABINS
Crew
7 IN 4 CABINS

Designers

Exteriors
ALBERTO MANCINI / OVERMARINE GROUP
Interiors
ALBERTO MANCINI / OVERMARINE GROUP
CUSTOM INTERIORS AVAILABLE
