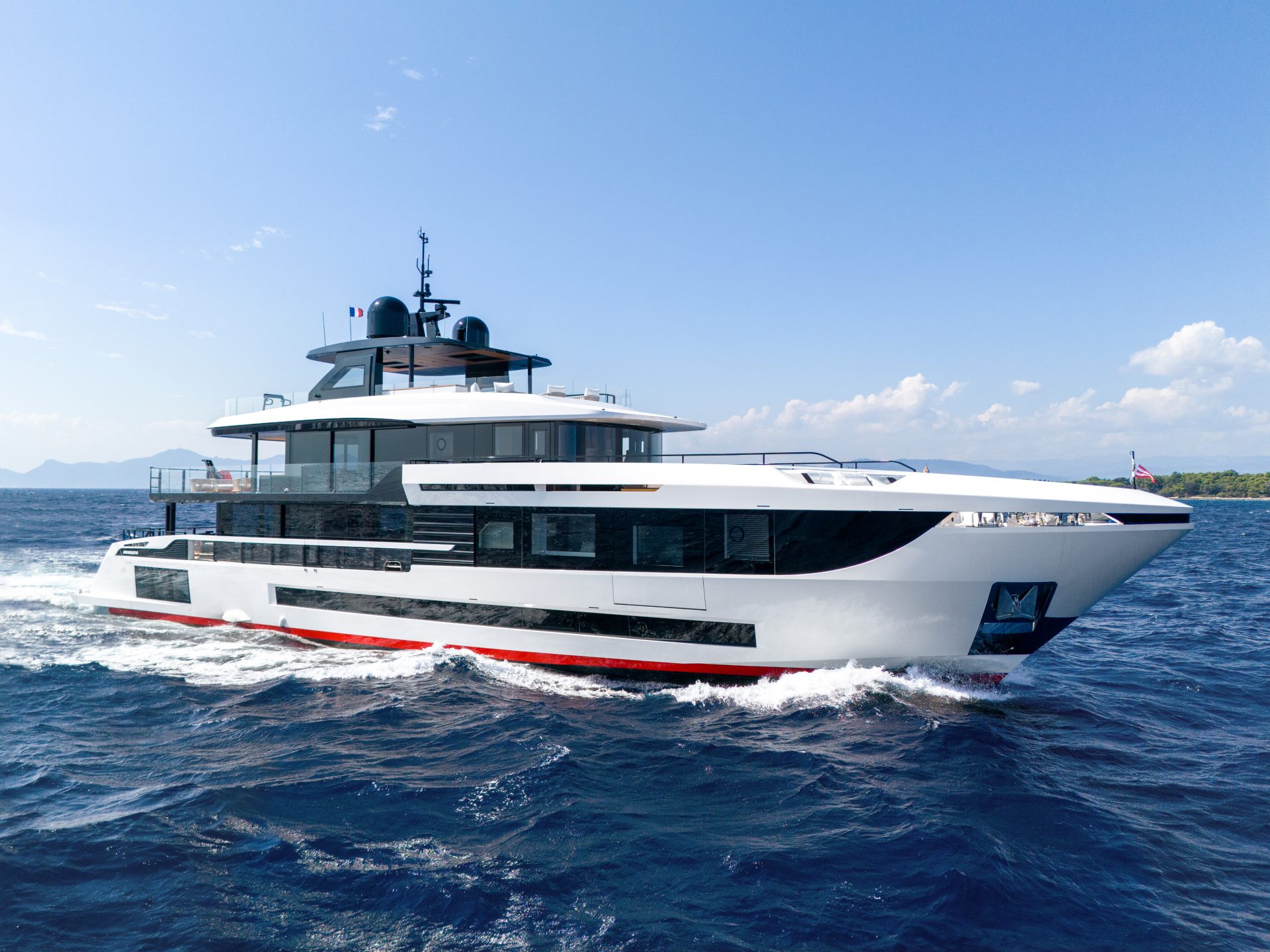

Mangusta Oceano 39
Specs & Performance
Construction
- Hull
- SINGLESKIN COMPOSITE
- Superstructure
- CARBON FIBER
Dimensions
- Length Overall
- ~ 39.20 M / 128'
- Beam
- ~ 8.50 M / 28’
- Half Load Draft
- ~ 2.3 M / 7'7''
- Displacement at full load
- ~ 240 T / 529,110 LBS
- Displacement at half load
- ~ 227 T / 500,450 LBS
- Gross Tonnage
- ~ 324 GT
Tank capacity
- Fuel Capacity
- ~ 32,000 L / 8,450 US GALS
- Water capacity
- ~ 4,000 L / 1,060 US GALS
Propulsion
- Main engines power
- 2 X MTU 12V 2000 M86 1700 HP @ 2450 RPM (1268 kW)
2 X MTU 16V 2000 M96L 2600 HP @ 2450 RPM (1939 Kw) - Transmission
- 2 SHAFT LINES WITH FIXED PITCH PROPELLER
- Stabilizers
- ZERO SPEED AND UNDERWAY
Performance
- Max speed
- ~ 15 KNOTS - M86
~ 20 KNOTS - M96L - Cruising speed
- ~ 12 KNOTS - M86
~ 16 KNOTS - M96L - Economical speed
- 10 KNOTS - M86
10 KNOTS - M96L - Range at economical speed
- ~ 2250 NM - M86
~ 2100 NM - M96L
Accommodation
- Guests
- UP TO 12 IN 5 CABINS
- Crew
- 7 IN 4 CABINS
Designers
- Exteriors
- ALBERTO MANCINI / OVERMARINE GROUP
- Interiors
- ALBERTO MANCINI / OVERMARINE GROUP
CUSTOM INTERIORS AVAILABLE
PROFILE
SUN DECK
UPPER DECK
MAIN DECK
LOWER DECK
